A side-by-side comparison of raster engraving on an Odin 32-60 at 2,000 mm/sec vs. 1,000 mm/sec, exploring how extend space affects actual job time.
Introduction
This article is going to explore a simple raster engraving job done on a Odin 32-60 at maximum speed on one side of a wood phone holder, and that same job done at half that speed on the other side.
The published specs for the Odin list max raster speed at 2,000mm/sec:
Odin Series User Manual
Side By Side Comparison
Here are videos of both sides being engraved, in real time.
Which side is set to 2000mm/sec and which side is set to 1000mm/sec?
The Results
If you said that Side 1 was at 2000mm/sec and that Side 2 was at 1000mm/sec, you would be absolutely correct!
Speed isn't everything. It's only part of the equation.
The reason the same job takes longer when set to 2000mm/sec than it does when set to only 1000mm/sec is the extend space. The acceleration and deceleration matter more, and at 2000mm/sec, the head has to have more room to slow down and turn around. so all that counts in the travel time of the head.
Common Settings
These are the settings common to the specific machine on which this test was run.
Scanning Offsets
The offset values came directly from the gold card that shipped with the machine. These values are different for every machine regardless of model or wattage.
Additional Settings
The additional settings were pulled from the dsp of the test machine
At the time of publication, the LightBurn version used did not calculate extend space in the time estimates.
The results posted here do not have extend time calculated in LightBurn. It is in beta however.
Side 1
You can find this file attached at the end of the article.
Settings & Est. Time
Actual Time
text
pic
Side 2
You can find this file attached at the end of the article.
Settings & Est. Time
Actual Time
text
pic
Extend Space
At the time of publication, the LightBurn version used did not calculate extend space in the time estimates.
The results posted here do not have extend time calculated in LightBurn. It is in beta however.

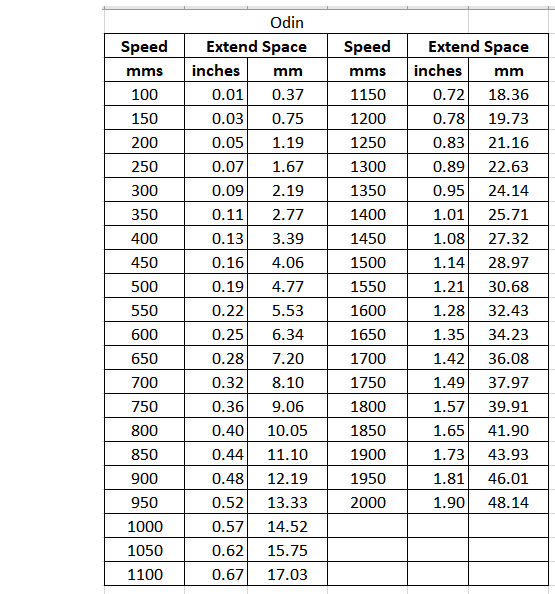

Extend Space Required based on Engraving Layer Speed for stock Odin Series Machines
But we did do a quick calculation to get baseline numbers from the Odin series:
Conclusion
text
