Preface: This article covers some of the technical details of the GRT8-M1 relay used in the Aurora series Lasers

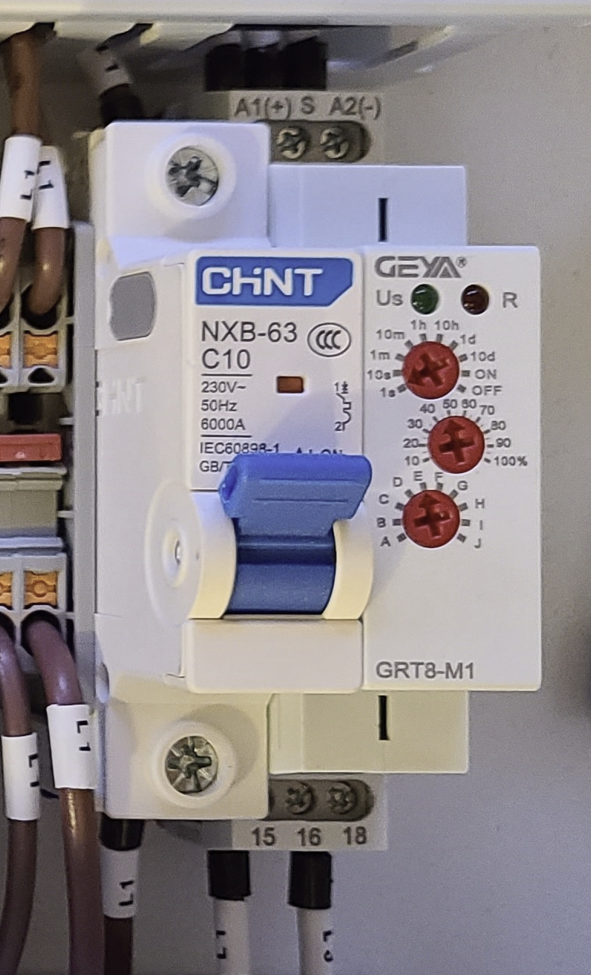

GRT8-M1 located in the top of the Aurora, next to the Main Breaker
Part Number Explained
We use the GRT8-M1 with is a SPDT Timer off relay with 120v Control Voltage so the full part number would be GRT8-M1/W240
Red Knob Settings
Knob 1: 1s
Knob 2: 50pct
Knob 3: E Mode
Wiring from Aurora Schematics
Aurora Series Wiring Diagram v8.4
Tracing Wires Back to Sources or Devices
Notes About Relay Function
