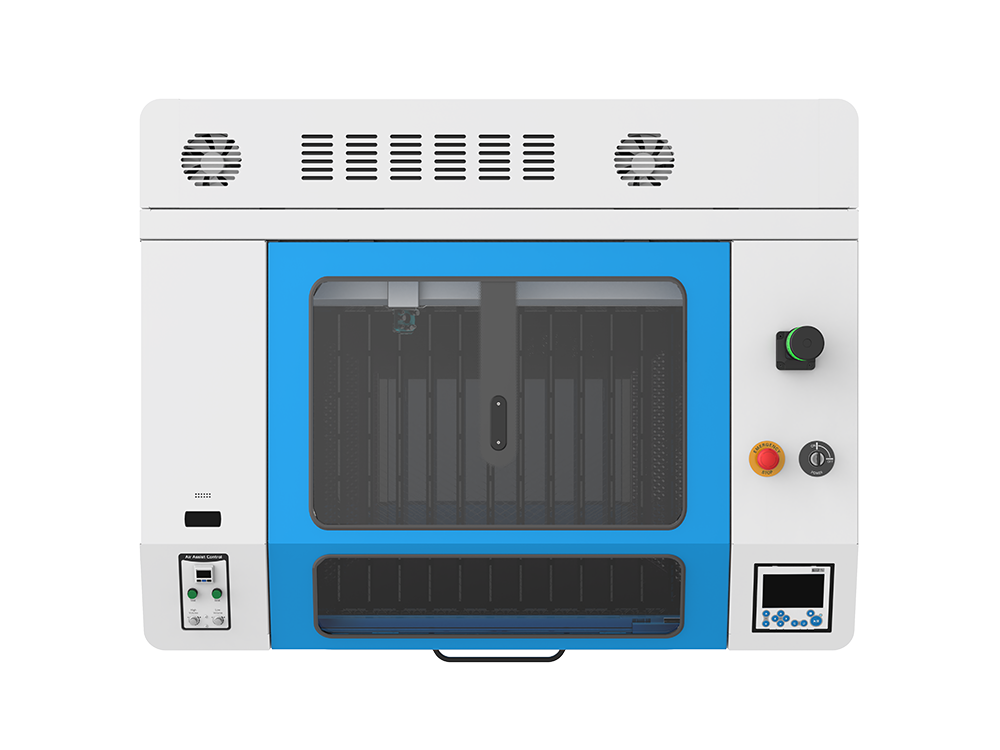

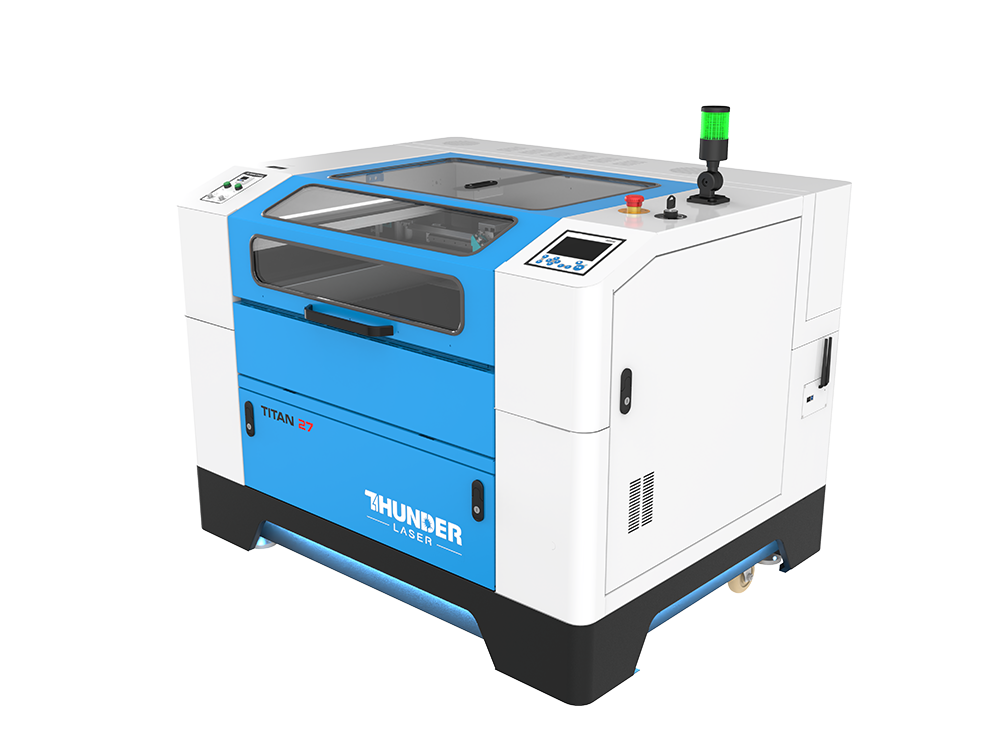

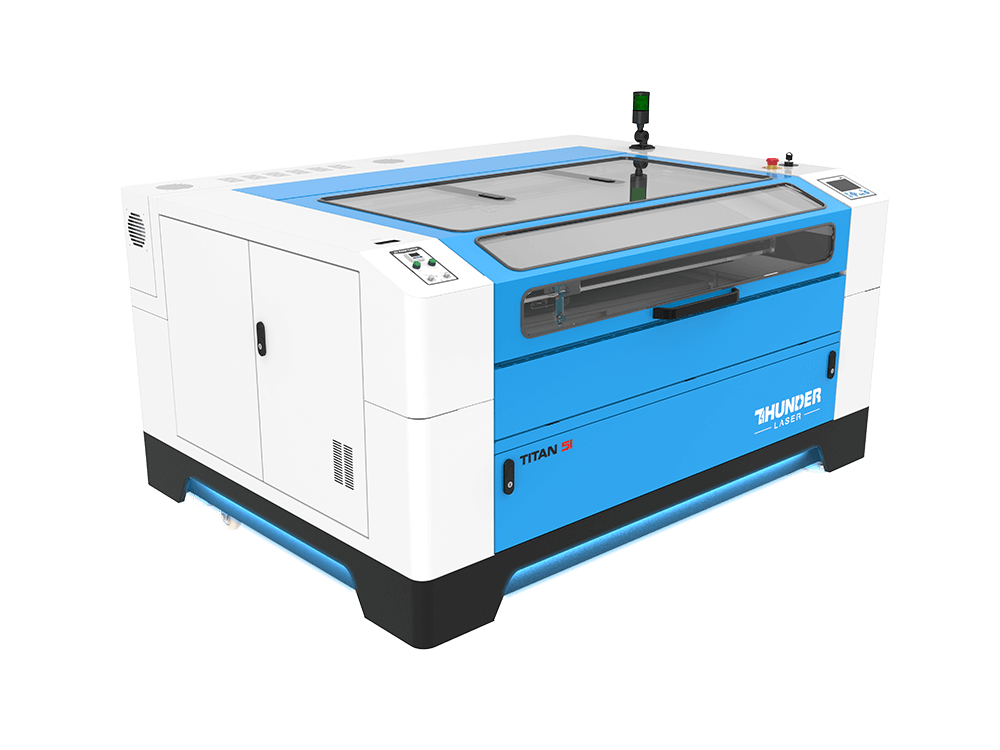

Titan Series
Starting at: $16,250
All -in-one. Engraving, Cutting and marking
Dual-Camera for Ultra Precision

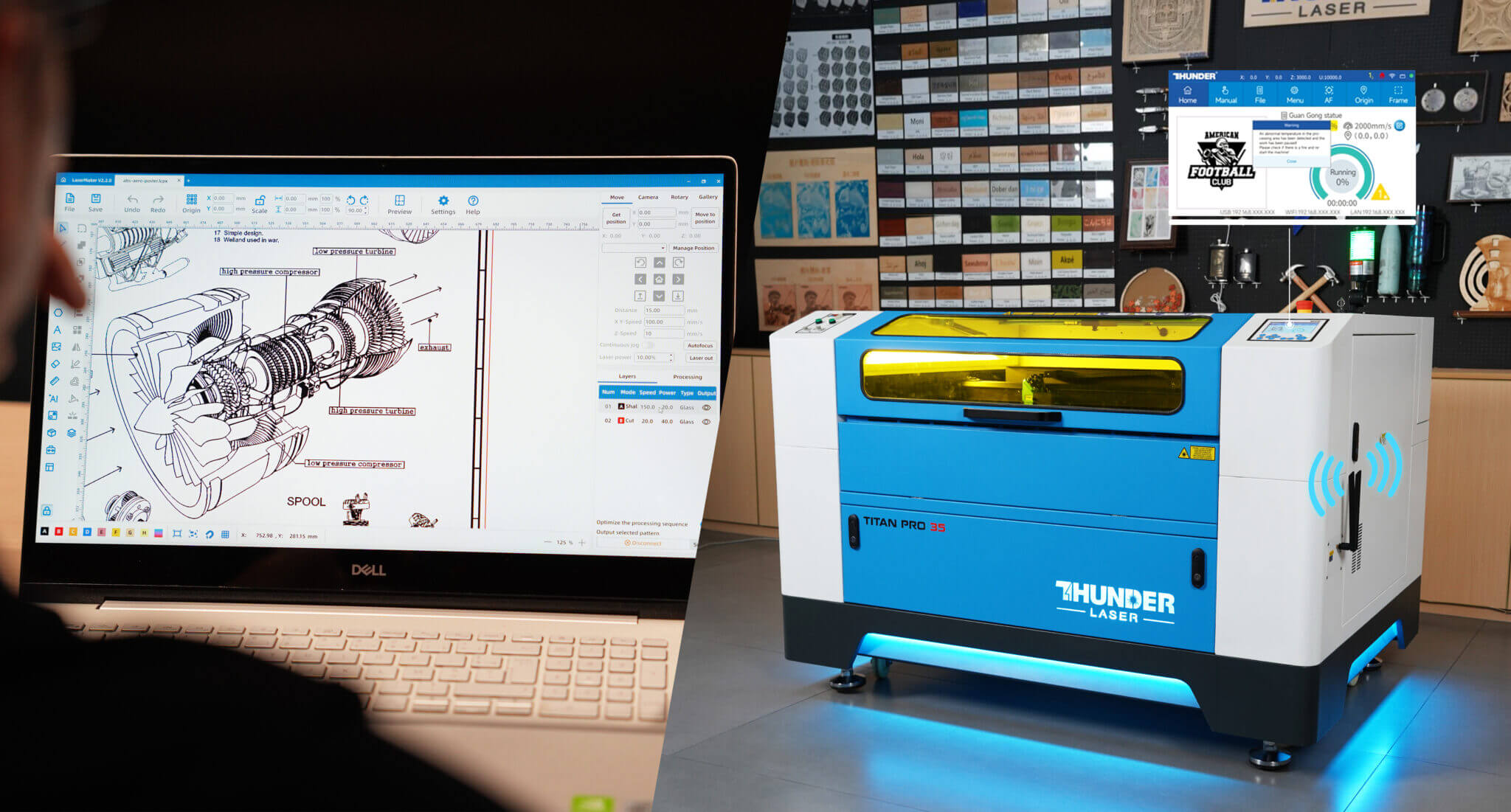

Full Wifi for All-in-One Connection
Features:
- Lots of power for high-efficiency cutting
- 50w RF tube cuts up to 1/4" wood or 3/8" acrylic
- Live training with a dedicated expert
- Works with tumblers and curved items
- True enterprise-grade quality for a fraction of the cost
- Easy controls for smooth use
- Servo motors for lightening fast processing times
- 1GB of storage for big files
- Built-in safety features
Safe & secure checkout
Why Titan?
Premium Power for Serious Business Owners
For High-Volume Laser Production
Why Professionals Are Switching To Thunder Laser Titan
01
Production Design
Titan’s production design breaks material limits, delivering next-level versatility & performance.
02
All in One. Best in Class
Whether you want engraving, cutting, or marking Titan unleashes creativity across all production scales.
03
With 10 Innovations
With 10 breakthrough innovations, Titan delivers results – faster, cleaner, and smarter.
04
Built for Growth
Built for Production, Built for Growth. Your Workhorse for High-Volume Laser Production
10 Innovations. One Leap Forward
Engraving, Cutting,Marking Titan Does lt All
Powered by a smart dual-laser system, Titan enables seamless switching across three core laser processes, expanding your creative and industrial potential.
Your Workhorse For High-Volume Laser Production
Our high-speed laser engraving machines are built to last. Whether you’re a weekend project warrior or a professional craftsman, you need a powerful and precise machine that lets you focus on creating.
Why do so many people love Thunder Laser? Just let them tell you.
Specifications / Comparison
Take a closer look at what the Titan series has to offer.

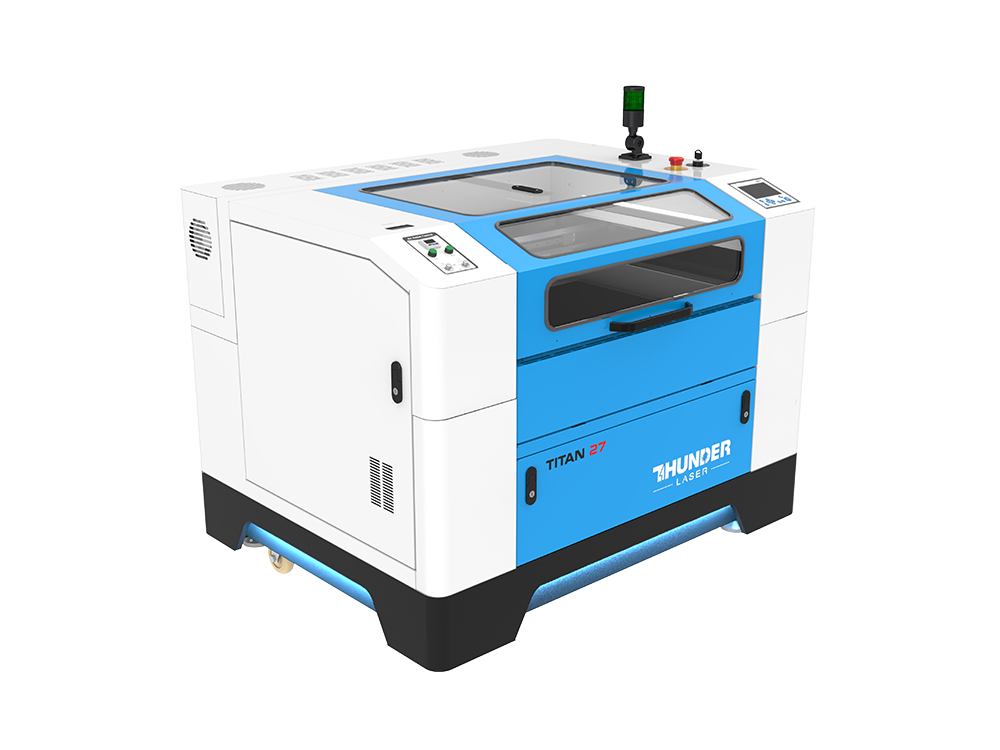

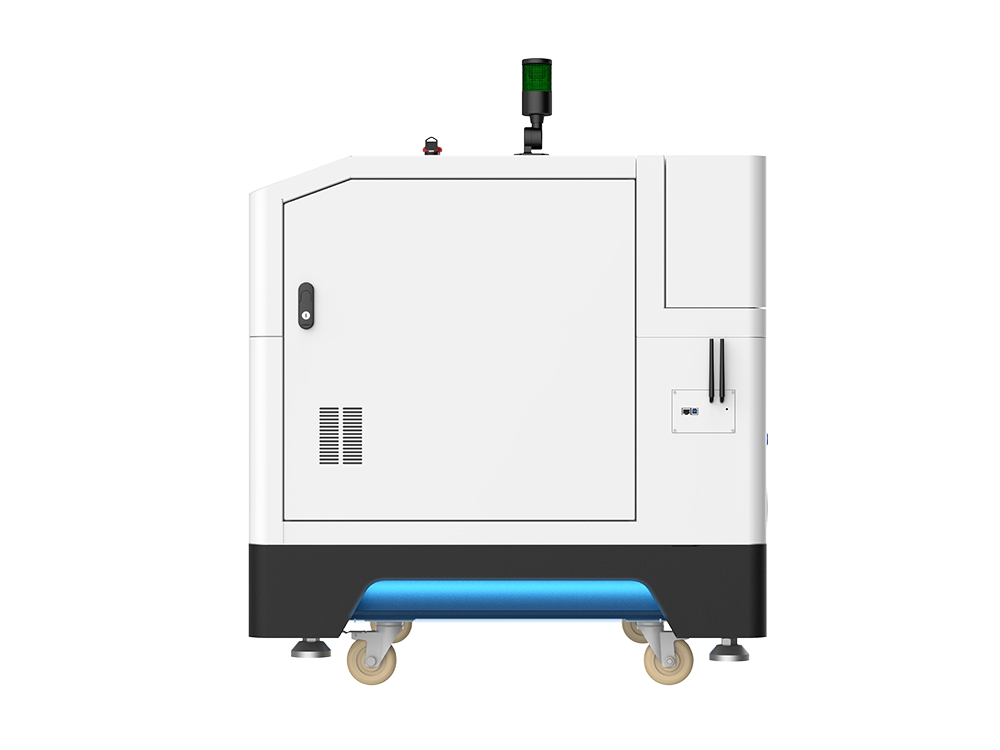

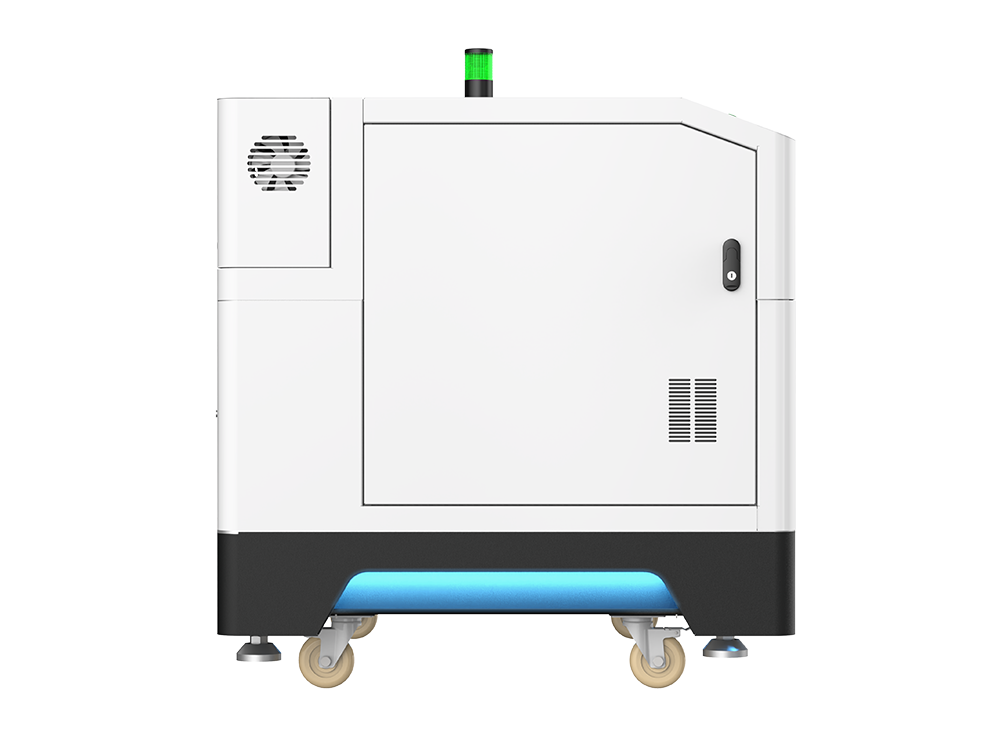

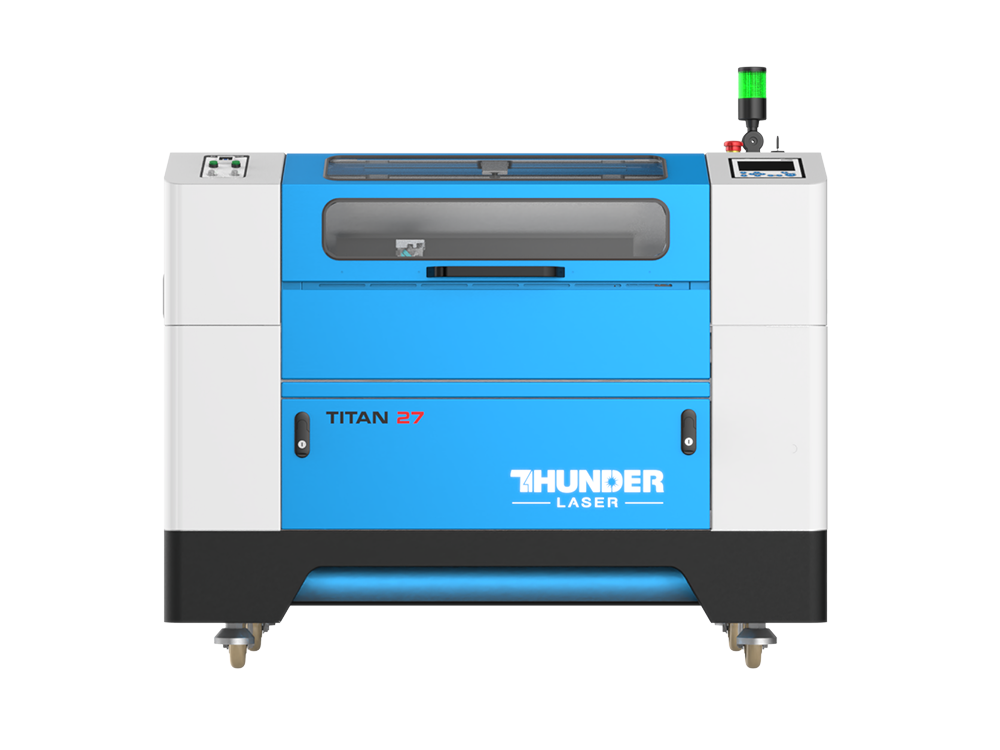

| Titan 27 |
 Titan 35 |
 Titan 51 |
|
|---|---|---|---|
| Dimension | 53.15" × 42.13" × 43.31" | 61.02" × 46.06" × 43.70" | 76.77" × 57.87" × 43.70" |
| Working Area | 27.56" × 19.69" | 35.43" × 23.62" | 51.18" × 35.43" |
| Pass-through Door | 2.5" | 2.5" | 2.5" |
| Z-depth | 9" | 9" | 9" |
| Laser Type | 50W | 60W, 80W | 80W, 100W, 120W |
| Dual-Laser System | No | No | No |
| RF Metal Tube Cooling Method | Air Cooling | Air Cooling | Air Cooling |
| Max Speed | 3000mm/s Engraving & 300mm/s Cutting | 3000mm/s Engraving & 300mm/s Cutting | 3000mm/s Engraving & 300mm/s Cutting |
| Acceleration Speed | 8G (80,000mm/s²) | 8G (80,000mm/s²) | 8G (80,000mm/s²) |
| Motion Control System | AC Servo Motor for X/Y Axis | AC Servo Motor for X/Y Axis | AC Servo Motor for X/Y Axis |
| Positioning Accuracy | <=0.01mm | <=0.01mm | <=0.01mm |
| Top Camera | 1* 5MP Camera (only compatible with Laser Maker Software) | ||
| Head Camera | 1* 5MP Mark Point Camera (only compatible with Laser Maker Software) | ||
| Control Panel | 5-inch Capacitive Touch Screen Panel | 5-inch Capacitive Touch Screen Panel | 5-inch Capacitive Touch Screen Panel |
| Internal Memory | 1024MB (1GB) | 1024MB (1GB) | 1024MB (1GB) |
| Operating System | Windows & Mac OSX | Windows & Mac OSX | Windows & Mac OSX |
| Lens | 2.5'' (Standard), 1.5'', 2.0'', 4.0'' (Optional) | ||
| Electrical Requirements | 230V - 20A, NEMA 6-20 | ||
| Safety Level | FDA & CE Certification | ||
| Warning Indicator Light | Green Light for Standby Mode and Safe Status; Red Light for Processing Mode or a Hazardous Status | ||
| Fire Alarm Buzzer | Activated When the Work Platform Temperature Exceeds 55°C | ||
| Lid Material | Transparent Tempered Glass | ||
| Lid-opening Protection | Yes | ||
| Side Panel Interlocks | Yes | ||
| Exhaust System | 6" Integrated Centrifugal Exhaust Fan | ||
| Dust-proof Design | X/Y Axis Closed Rail Design; Accordion Cover | ||
| Air Assistance | Inside & Outside Air Assist; Dual-channel Air Blowing | ||
| Auto Focus | Yes | ||
| Rotary Accessible | Yes | ||
| Software | LaserMaker, RDworks, LightBurn | ||
Frequently Asked Questions
How precise is the Titan Series for detailed industrial engraving?
Exceptionally precise. Titan delivers 0.01mm repeatability thanks to its rigid all-metal frame, Hiwin linear guides, and AC servo motors. The Iradion RF laser with patented CERAMICORE® technology ensures ultra-fine beam quality, making it suitable for high-end applications requiring fine detail and tight tolerances.
Is the Titan Series suitable for high-volume or batch production environments?

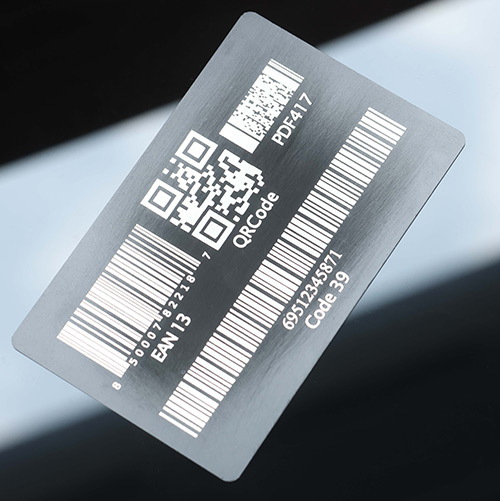

Yes, it’s built for it. With up to 3000mm/s speed and 8G acceleration, Titan is engineered for fast, continuous workflows. Integrated software supports auto-generation of serial numbers, barcodes, and QR codes—streamlining mass customization, traceability, and data-driven production.
What software and connectivity options does Titan support?
Titan supports LaserMaker, LightBurn, and RDWorks. LaserMaker is optimized for Titan hardware, offering material libraries, live camera previews, and automated layout tools. It also supports Wi-Fi and TCP/IP communication for wireless file transfer and real-time control, keeping your workspace clutter-free and modern.
What’s the difference between Titan and Titan Pro?
The key difference lies in the laser configuration:
- Titan is equipped with a single laser source, CO₂ laser source. It’s ideal for users who primarily work with either non-metal materials.
- Titan Pro features a dual-laser system — both CO₂ and fiber lasers integrated into one machine. This allows seamless processing of both non-metal and metal materials without switching equipment, making it perfect for high-mix production, prototyping, or advanced workshops.
In short:
Titan = single-source, specialized
Titan Pro = dual-source, all-in-one versatility
How does Titan ensure operator safety during operation?
Titan meets Class 1 laser safety standards with features like dual-channel lid detection, real-time door monitoring, laser interlock systems, and a double-layer safety window (tempered glass + fiber shield). Physical shutters and signal isolation protect both laser sources from accidental activation.
