Aurora MOPA Control Panel Pictures
Quick
answer
answer
A photo reference guide to the internal control panel components of the Aurora 20W MOPA fiber laser, including power supplies, motor drivers, and wiring.
Applies toAuroraTopicGeneral
This is a listing of pictures of the control panel in the Aurora 20W MOPA from May 2022.
Main Control Panel
(Located on top; must remove cover with fans and stack light.)
Motor Driver 36V Power Supply
EZcad3 Control Board and Motor Driver 36V Power Supply

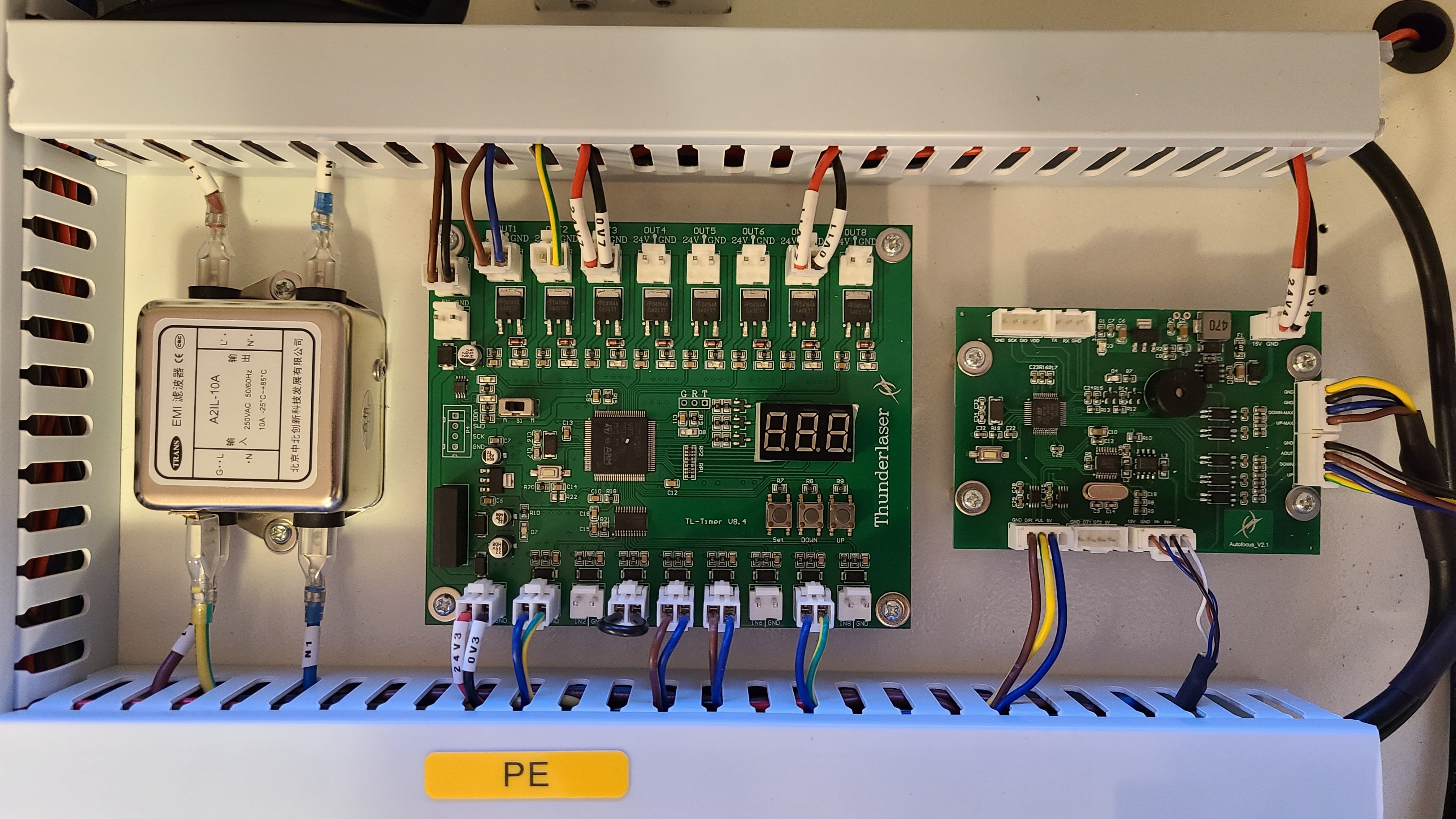

Control Components
Controls Components

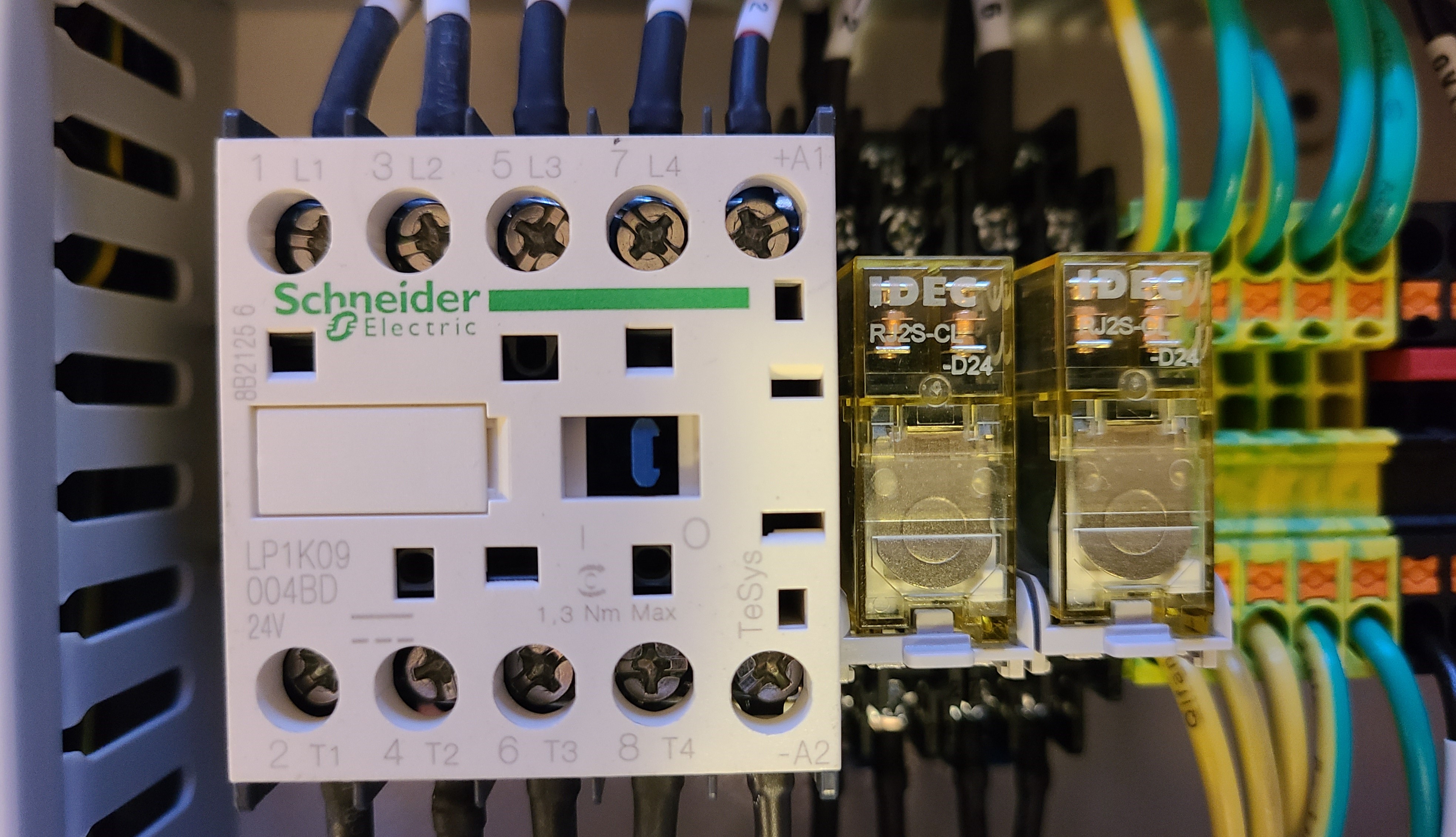

Main Contactor
JPT 20W MOPA Source (On Right Side)
Z Driver (On Left Side)
Access to Lower Tray Components
(Remove the screws on the left and right; they are ~30mm long screws.)
Power Supplies in the Tray
Wiring Closeups
RSP-200-24
RD-125B
HF55W-D-L
