Aurora V1 Exhaust
Quick
answer
answer
Overview of the exhaust equipment included with the original Aurora V1 laser, including fan specs, flex ducting, and clamps.
Applies toAuroraTopicGeneral

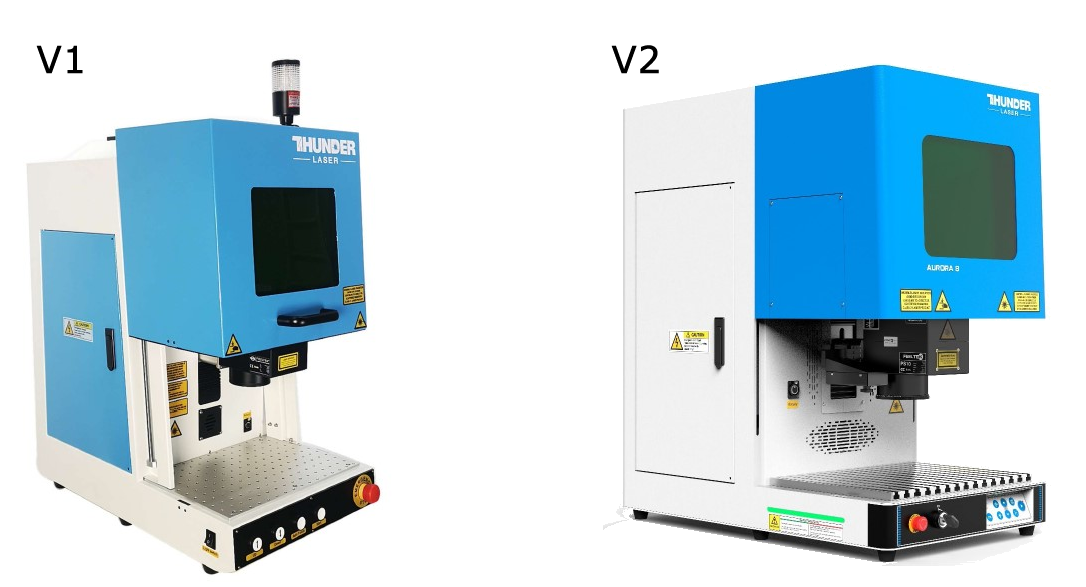

This article is for the V1 machines, the original Aurora. If you have a V2 Aurora you should check out this article instead.
Included Stock Equipment
Exhaust Fan
The Aurora ships with an HF-75S Axial Inline Fan:
Specifications
- Product: Inline duct fan
- Model: HF-75S
- Blade material: ABS Plastic
- Diameter: 3''/75 mm
- Voltage: AC 110-120V
- Frequency: 60 Hz
- Current: 0.50/0.42A
- Power: 29/25W
- Speed: 2750/2550 RPM
- Air volume: 46/43 m³/h
- Noise: 26/21 dB
- Protection class: IP44
- Air pressure: 129/114 Pa
- Double speed: Low/High
- Operating temperature: -20 - 60 ℃
Flex Ducting
The Aurora ships with 2 sections of 3" plasticized cloth-reinforced ducting, each measuring xxM (xx') in length (fully extended) for a total of xxM (xx').
Clamps
The Aurora ships with 3 appropriately sized stainless steel hose clamps.
