Thunder Laser Main Power Requirements

Preface: This article covers the main power requirements for your Thunder Laser. It is your responsibility to properly install a Local Code Compliant power feed for the machine. Nothing in this guide will supersede a Local Jurisdiction and you should

IF you apply the improper voltage to your machine and damage components, the warranty does not cover the damage. Please pay attention to the voltage requirements. Most machines are 120v Except the Titan and Nova Plus units with 100W or higher RF tubes.

Power Requirements:

As of Feb, 2025. Previous configurations may differ. Values include the Chiller (if applicable), Air Pump (if applicable) and Exhaust fan since they are plugged into the machine.
Nova and Nova Plus
Odin and Bolt
Aurora 8
Titan and Titan Pro
Nova and Nova Plus
Odin and Bolt
Aurora 8
Titan and Titan Pro
(You must install the proper receptacle, wiring, and OCPD for your machine. Thunder Laser USA does not endorse or condone just swapping out parts to make the plug fit or improper installations. Please consult with an electrician on how to properly install a receptacle in your jurisdiction)
*Newer Shipments will come with a 15A power cable, we still recommend a 20A dedicated receptacle but a 15A dedicated will work as well (6/1/2025)
**Final specs still being determined, please email support for further clarification (9/2025)

Machine	Estimated Full Load	Plug
Mini 60-40W	9A	15A, NEMA 5-15 - 120V
Nova 24-60W	9A	15A, NEMA 5-15 - 120V
Nova 35-80w	12A	20A, NEMA 5-20- 120V
Nova 35-100W	12A	20A, NEMA 5-20- 120V
Nova 51-100W	12A	20A, NEMA 5-20- 120V
Nova 51-130W	18A	20A, NEMA 5-20- 120V
Nova 63-100W	12A	20A, NEMA 5-20- 120V
Nova 63-130W	18A	20A, NEMA 5-20- 120V
NOVA Plus 24,35,51,63- 60W/80W	12A	15A, NEMA 5-15 - 120V*
NOVA PLUS 35,51,63 - 100W/120W Iradion Air Cooled		20A, NEMA 5-20 - 120V
NOVA PLUS 35,51,63 - 100W/120w SPT w/Chiller		Dual 20A, NEMA 5-20 - 120V

Machine	Estimated Full Load	Plug
Odin\ Bolt Pro 22-30W	6A	15A, NEMA 5-15- 120V
Odin\ Bolt Pro 32 55W/60W	12A	15A, NEMA 5-15- 120V
Bolt V2 \ Bolt Plus 24 (30W or 60W)	6A	15A, NEMA 5-15- 120V
Bolt Pro 36 with 80W		20A, NEMA 5-20 - 120V

Machine	Estimated Full Load	Plug
Aurora 1.0 20W/50W/20W MOPA	2.5A/3.5A/2.5A	15A, NEMA 5-15- 120V
Aurora 2.0 UV/20W/50W/60W MOPA/100W MOPA	3A/2.5A/3.5A/4/4.5A	15A, NEMA 5-15- 120V

Machine	Estimated Full Load	Plug
Titan and Titan Pro	20A	20A, NEMA 6-20 - 230V**

NEMA Receptacles and Plugs:

For 120v Machines:

For 230V Machines:

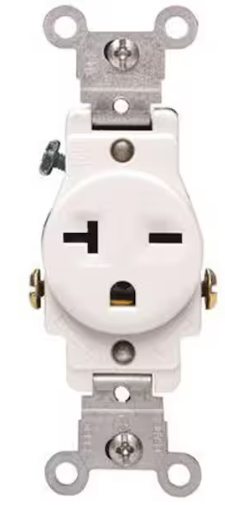

Should have 2 hot wires and a ground into a NEMA 6-20R (no neutral)

Main Power Cable Lengths:

If the power cable is too short you should relocate your receptacle first, or if you must you can look into an extension cable:
Using Extension Cords With Thunder Laser Nova Series

NEMA 5-15 Receptacle and Plug (15A Machines)	NEMA 5-20 Receptacle and Plug (20A Machines)

Machine Series	Length	Plug Location
Nova/Nova Plus	67" (1.7m)	Back Right
Odin\ Bolt Pro	67" (1.7m)	Back Left
Aurora 1.0/2.0	67" (1.7m)	Back
Bolt	67" (1.7m)	Right Side, Back
Titan	67" (1.7m)	Right Side, Back

Additional Considerations:

Surge Protectors\Power Strips
We don't typically prescribe the use of any surge protectors, etc... and many 'off the shelf' ones can cause issues
here is more on that: Plug Strips & Surge Protectors
GFCI Type Receptacles
We don't typically prescribe the use of any GFCI protection on the Nova series Machines as the 30,000v and water running through the tube often false the GFCI into tripping. They usually end up being removed. For the ODIN, Bolt and Aurora series the concern of the Electrical Current hopping through the water is not present.
Generators

Thunder Lasers can be powered from properly sized and configured generators. The generator should be able of providing full load power for the machine and any peripherals attached to it.
