ThunderBolt Desktop Machine 3rd Party Stand and Base Options

Preface: This article covers some suggested stand options for the BOLT Desktop Laser. These stands are not applicable for the Bolt Plus 24 or larger machines.

Thunderbolt

30w Desktop Laser with RF that does not come with a base.

Thunderbolt Housing Dimensions

WxDxH: 925mm x 690mm x 460mm (36.5"x27"x18")

Weight: 77kg , ~170lb

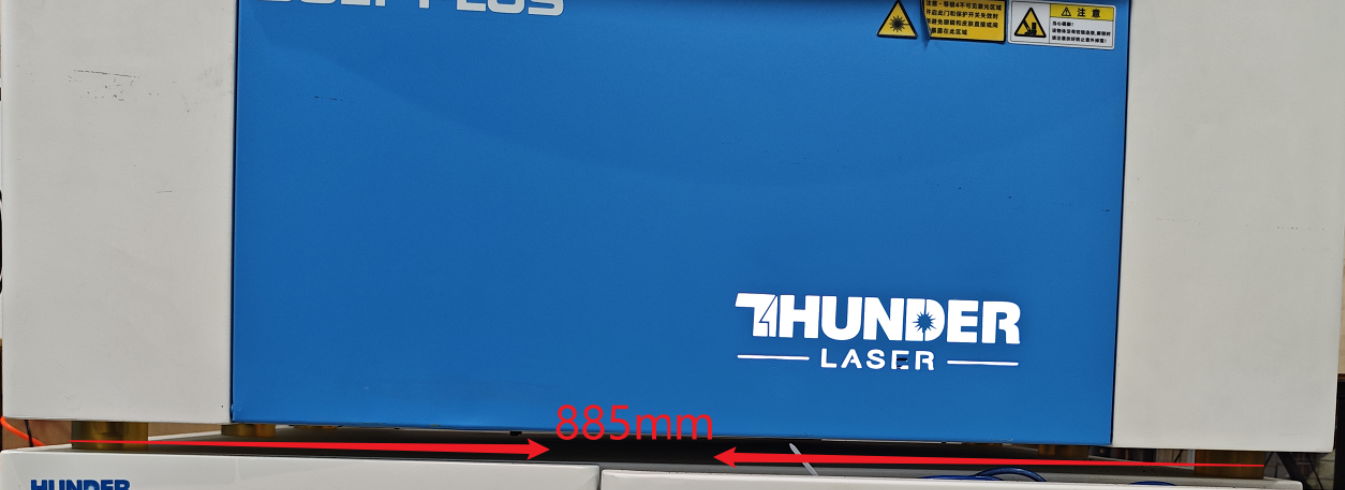

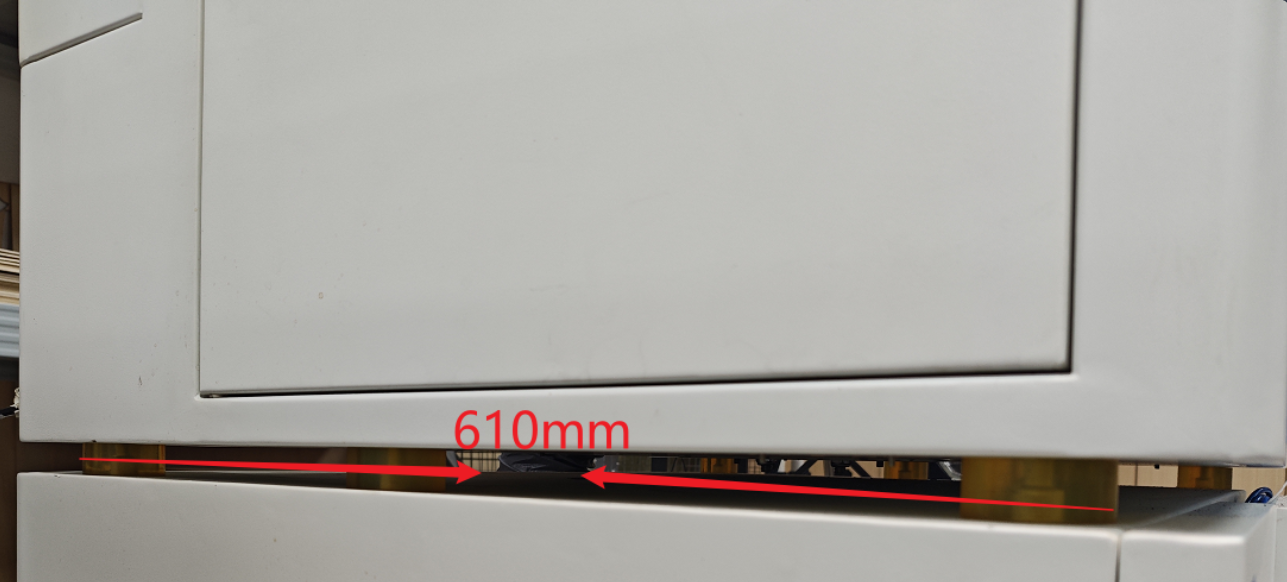

Feet Spacing: centers 835mm x 560mm (32.9" x 22") with ~50mm (2") diameter feet. Feet may add ~20mm (.8") to Height. Feet use a m6x1.0mm flat head bolt to attach to the machine base.

Potential Stand Options

Considerations

1. Adjustable stand height
2. Planned height of top of Lid of Thunderbolt to match Odin 22 (Approx 42" to lid on Odin 22 which means the Bolt stand table height should be around 24-30")
3. Planned height in comparison to some of the Nova 24 Stand Options (Approx 53" to top of Nova 24 with a 27" table would put the Thunderbolt Stand height at 35" since the Bolt is 200mm shorter)
4. Storage
5. Casters\Fixed Feet
6. Cost
7. Working Space alongside the machine
8. Stand Load Rating

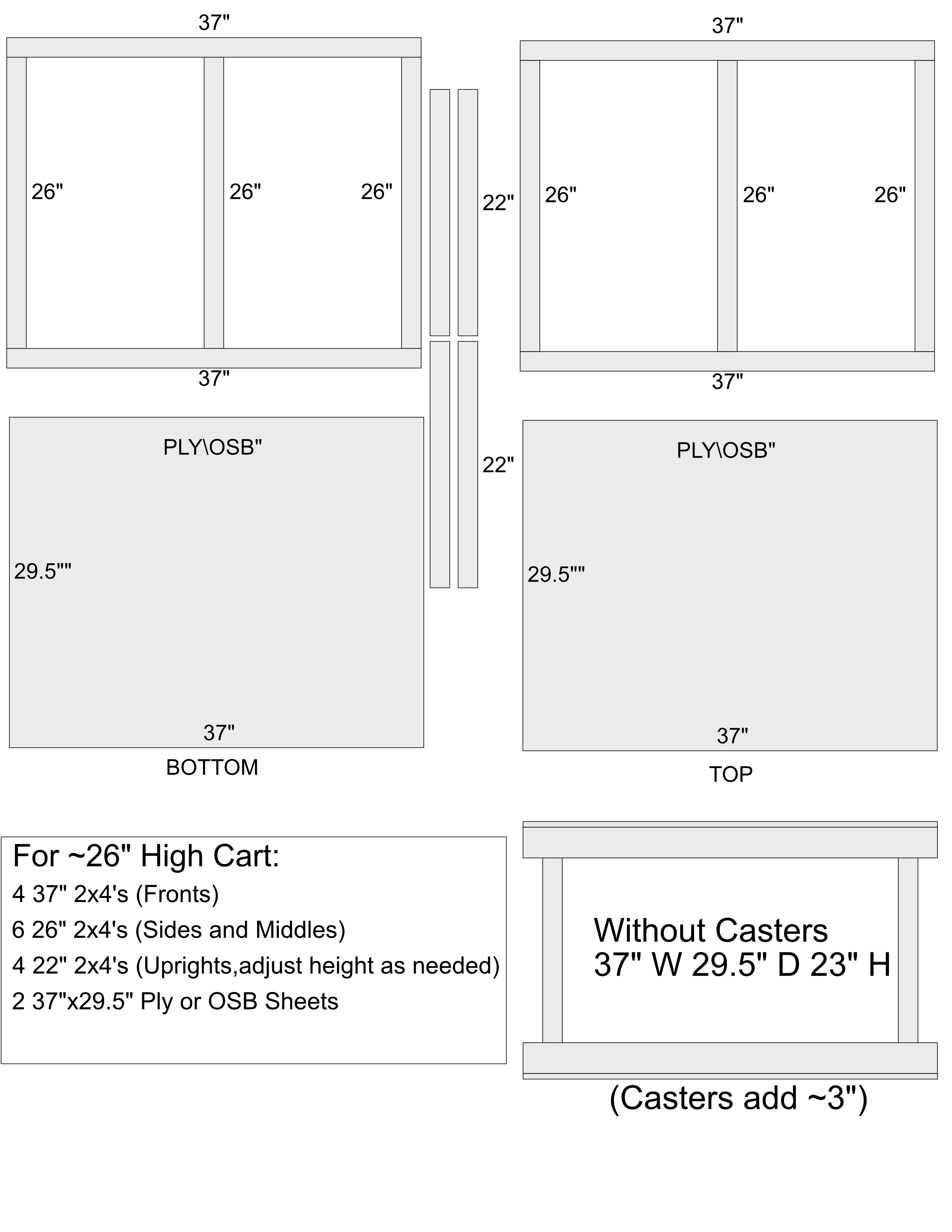

Custom Built

Credit to Robert Kofoed of Computer Creationz for the design

Dimensions 37" wide x 29" deep x 26" tall from ground to top of cart.

Approx Cost: $70 to $100

Material list:

• 5- 2"x4"x8' Pine Boards
• 1 sheet of 1/2" ply or osb
• 4- 2" wheels (locking) with a 90 lb rating each — Link
• 16- 1" lag screws that will fit the holes of the wheels
• 1 small box of 2.5" blue screws from Kreg. Link
• Paint if you desire.

Tables

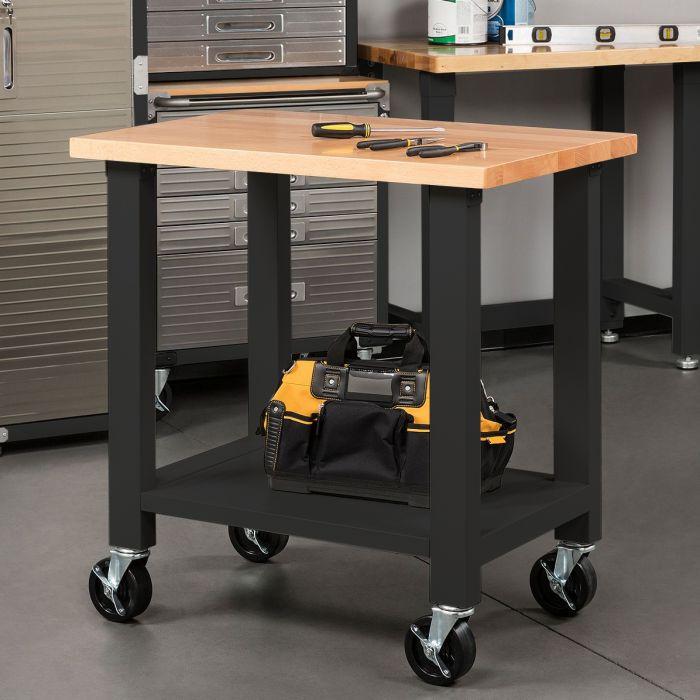

Seville Classics

Pros:

• Assembled Dimensions: 36" W x 24" D x 37.5" H
• Solid polyurethane-coated wood top measures 1.5" thick
• Available finishes:
  • Granite, model no. UHD20283B
  • Graphite, model no. UHD20183B
• Heavy-duty steel frame
• Four 5" heavy-duty locking wheels
• Total weight capacity: 500 lb.
• Net weight: 69.3 lb.
• This product requires assembly and all tools required are included.

Cons:

• Limited storage
• Height 37.5"

Eastwood

Pros:

• Supports 1000lbs, so its very heavy duty
• 47x32" top, so extra work space

Cons:

• Storage is limited to a single drawer, space below is not useful
• Casters are not needed
• Price, starts at $450
• 41" work height, likely way too tall
• About $85 to get it shipped. Check for coupon codes for Eastwood to save

Link to Stand on Eastwood Site

Uline

Pros:

• Height Adjustment: Adjustable steel legs 30 to 37" in 1 1/2" increments for work height
• 48"x30" top, so extra work space
• Holds up to 500 lbs.

Cons:

• Some storage below, but the shelf is minimal
• Shipping can be over $150
• Initial cost is $315

Link to stand on Uline site

Webstaurant Store #1

Pros:

• Cost is $125
• Decent shelf storage under the machine
• Stainless, easy to clean, will last
• 48"x30" top, so extra work space
• 639lb top capacity so plenty heavy duty
• Undershelf has a 363lb capacity
• Undershelf is adjustable
• Free Shipping for regular ground UPS to Commercial Address

Cons:

• Shipping may be around $85 to non Commercial Address
• Work Height is 34", appears to be customizable per spec sheet

Link to stand on Webstaurant Site

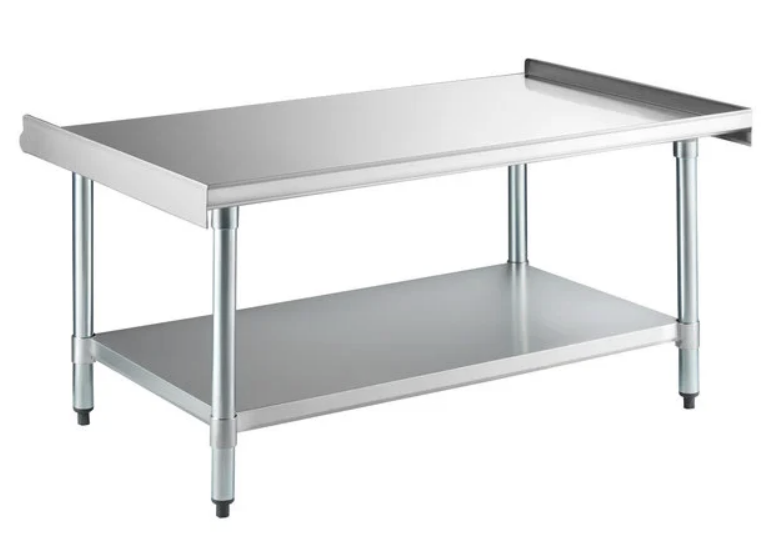

Webstaurant Store #2

Pros:

• Decent shelf storage under the machine
• Stainless, easy to clean, will last
• 48"x30" top, so extra work space
• 639lb top capacity so plenty heavy duty
• Undershelf has a 364lb capacity
• 1036lb total capacity
• Free Shipping for regular ground UPS to Commercial Address
• Work Height is 24", customizable per spec sheet

Cons:

• Cost is $185
• Shipping may be around $85 to non Commercial Address

Link to Webstaurant Site

Husky Adjustable Height Table

Pros:

• Comes in a variety of widths to fit the users needs, extra space on the sides
• Variable height from 26" to 42" to meet the users needs for height and preferences
• Can be sourced locally
• 300lb weight capacity is enough for the Bolt
• 4 Lockable Casters
• Users can select to add drawers if they like

Cons:

• Cost is kinda high for the base but adding drawers and width comes pretty cheap
• At 24" Depth it is just enough to put the Bolt on, the front and rear edges of the machine will hang off the table
• Mid range price, starting at $249

Husky Tables on Vendor Site
