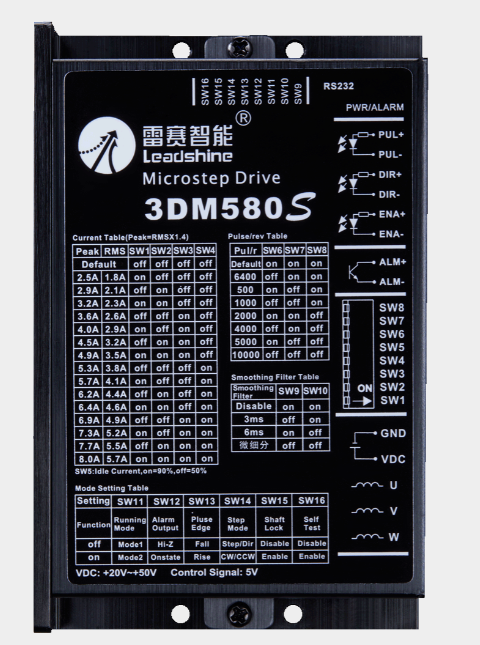

3DM580S Driver
Reference specs and OEM information for the 3DM580S stepper driver used in Thunder Laser machines.
Provided as-is for Thunder Laser USA customers. Always run a test cut on scrap first — settings vary by material and machine. Please do not redistribute.
This article covers driver information pulled from the OEM website.
Key Specifications
- Step & direction (PUL/DIR) or CW/CCW (double pulse) control
- Suggested supply voltage 20–50 VDC, up to 74 VDC
- 500 KHz max pulse input frequency at 50% duty cycle
- 8 micro-step resolutions of 200–10,000 via DIP switches, or 200–51,200 via software
- 16 output current settings of 2.1–8.0 A via DIP switches, or 0.5–8.0 A via software
- Configurable control command smoothing for reducing motor vibration
