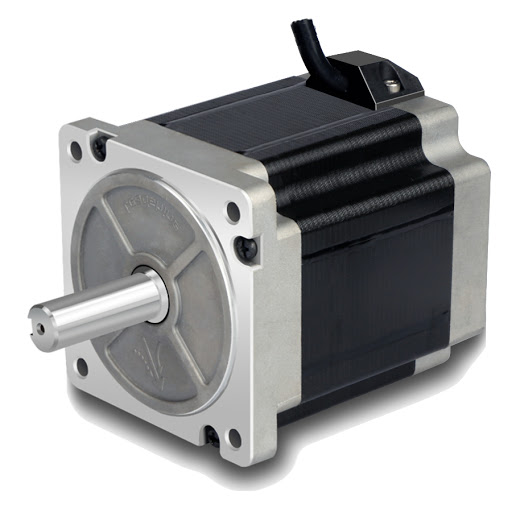

Specifications for the 86CM45 stepper motor, a 2-phase NEMA 34 motor with 4.5 N.m holding torque used in Thunder Laser machines.
Applies toAll machinesTopicGeneral
- 2 phase, NEMA 34 frame size
- 80 mm (3.15 inch) long
- 6 A phase current
- 4.5 N.m (638 oz-in) holding torque
- 12.7 mm (0.5 inch) shaft size
- Built with high quality materials including bearings and shaft made by Japanese manufacturers
- High precision, low motor heating, and low vibration
