Critical Spare Part Recommendations for Odin Series Machines
Recommended critical spare parts for Odin series laser machines, including optics, electrical components, and mechanical parts with purchase links.
This article discusses spare parts needs for your Thunder Laser machine, verify all part numbers for your existing part. Links may change, expire outside of our control.
If your laser is your business and down time is not acceptable while you wait on spare parts, then the following are recommended (Below are links to purchase and/or tech articles related to each subject):
Optics
Mirrors
Mirrors are a consumable and will greatly affect your power output if they are dirty or failed. For the Bolt series, the mirrors come pre-set in the aluminum tray for mirror location 1 & 2 and a loose mirror for location 3.
| Location | Reference Picture |
|---|---|
| Mirror 1 & 2 (Qty 2)Contact for Quote |  |
| Mirror 3 (Qty 1) |  |
Lens
Lens are a consumable and will greatly affect your power output if they are dirty or failed. For the Bolt series, the lens come pre-set in the aluminum tray.
Len:
| 1.5" Lens in Tray* |
| 2" Lens in Tray* |
| 2.5" Lens in Tray* |
| 4" Lens in Tray |
*contact for quote
Electrical
Power Supplies
The Bolt series has three AC-DC power supplies. One for Tube, One for the Control circuits X/Y Drivers and One for the Z/Rotary Drivers.
| Function | Reference Image |
|---|---|
| 48V Tube Power Supply: 30W , 55W/60W |  |
| 24V Control Circuit / X/Y Drivers |  |
| 36V Z Driver and Rotary Driver |  |
Motors Drivers
| Location | Reference Image |
|---|---|
| X Axis Motor |  |
| Y Axis Motor |  |
| X/Y Axis Motor Driver |  |
Sensors and Control Components
| Location | Reference Image |
|---|---|
| X/Y Endstops (Qty 2) |  |
| Z Endstop (Qty 2) |  |
| Auto Focus Sensor (Qty 1) |  |
| Air Solenoids (Plus and Pro models) |  |
| Air Pump for Odin |  |

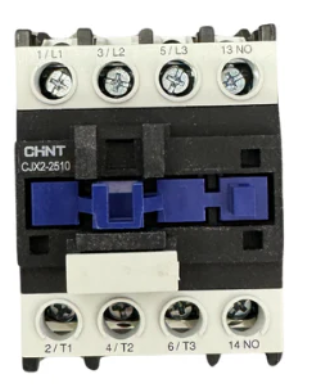

| Main Power Contactor Odin 22/32 |  |
| Controller |  |
Mechanical
| Location | Reference Image |
|---|---|
| Belt - Length Varies by Axis |  |
| Auto Focus Touch Post |  |
Email [email protected] for more information
