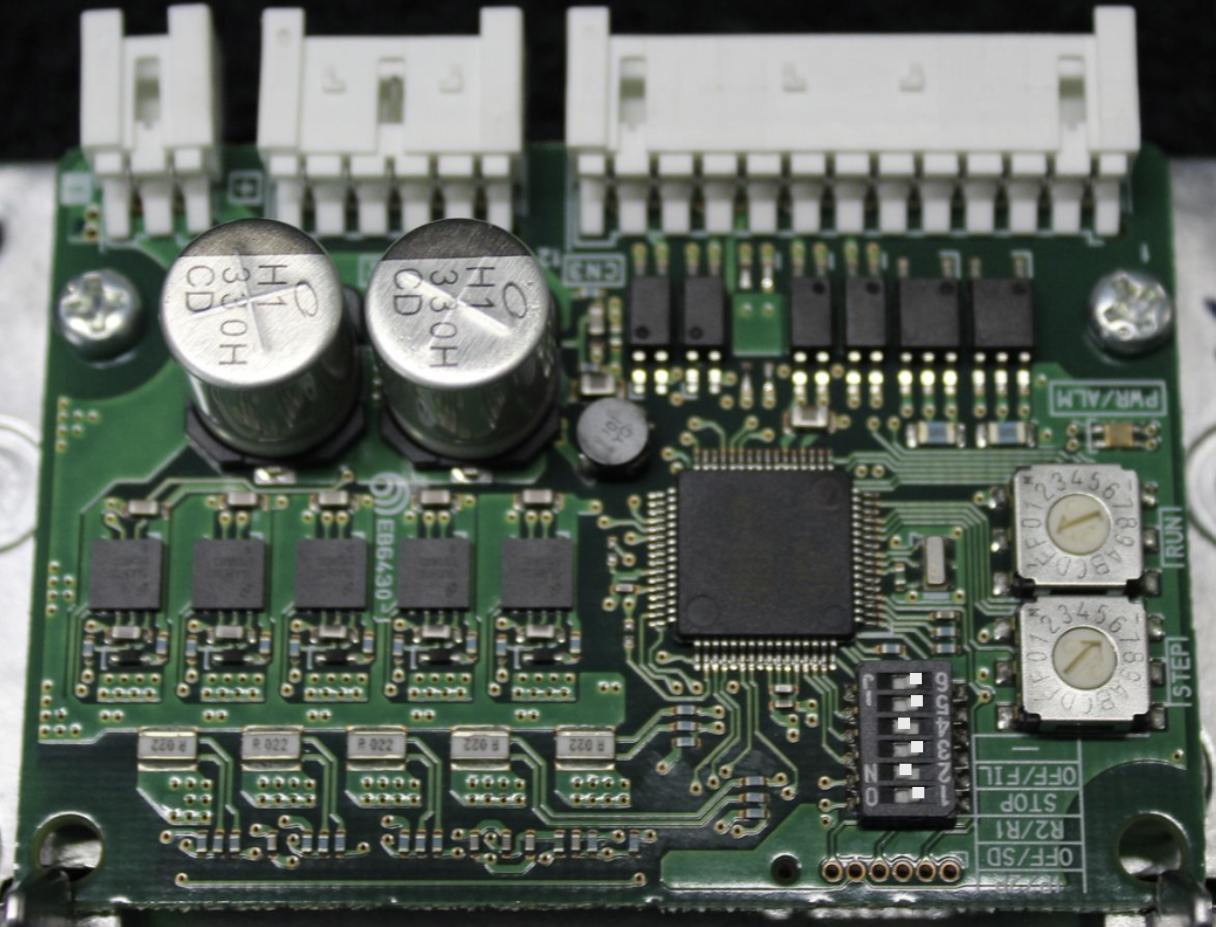

CVD518BR-K Driver
5-phase, fully digital microstepping driver, CVK Series Accepts 2-phase Pulse Input Signals 16 Motor Resolution Settings Lowest Vibration Driver Type Specs: Driver Type 5-Phase, Pulse Input Power Supply 24 VDC Current 1.8 A/Phase Excitation Mode
Provided as-is for Thunder Laser USA customers. Always run a test cut on scrap first — settings vary by material and machine. Please do not redistribute.
5-phase, fully digital microstepping driver, CVK Series
Accepts 2-phase Pulse Input Signals
16 Motor Resolution Settings
Lowest Vibration Driver Type
Specs:
Driver Type | 5-Phase, Pulse Input |
Power Supply | 24 VDC |
Current | 1.8 A/Phase |
Excitation Mode | Microstep |
Lead Wires | 5 |
Rotary and Dip Switch Settings:
Bolt
X Axis | Y Axis |
 Rotary Step - 6 Rotary Run - F Dips 2,4 ON, all others OFF |  Rotary Step - 8 Rotary Run - F Dips 2,4 ON, all others OFF |
