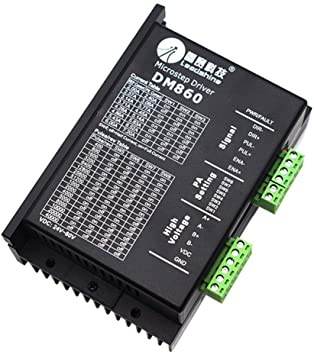

DM860 Driver
Technical reference for the DM860 stepper drive, covering features and full specifications including voltage, current, microstep, and environmental ratings.
The DM860 stepper drive adopts advanced features like electrical damping, anti-resonance, start-up smoothing, multi-stepping... With the input voltage of 20 - 80 VDC and output current of 0.50 - 5.60 A, it is capable of driving a wide range of 2-phase stepper motors with high precision at extra smoothness, quietness, and very low motor heating.
Its multi-Stepping feature allows a low resolution step input to produce a much higher microstep output for smoother & quiet motor movement, and much lower motor heating. This feature will significantly improve the performance of your stepper control systems.
Features
- Step & direction or CW/CCW control
- DSP-based stepper control technology
- Anti resonance
- Extra low noise
- Extra smooth movement
- Low drive & motor heating
- Maximum frequency: 200KHz
- Input voltage: 20 - 80 VDC
- Output current: 8 selections of 0.50 - 5.60A via DIP switches
- Micro steps: 16 selections of half - 256 step via DIP switches
- Automatic idle current reduction
Specification
| Model | DM860 |
| Phase | 2 |
| Control Mode | Step & Dir |
| Max Input Frequency | 200Khz |
| Input Voltage Range | 20 - 80 VDC |
| Suggested Power Supply Voltage Range | 24-72 VDC |
| Output Current | 0.50 - 5.60 A |
| # of DIP Switch Resolution Configurations | 16 |
| DIP Switch Resolution Settings | 400, 800, 1600, 3200, 6400, 12800, 25600, 51200, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 40000 |
| # of DIP Switch Current Configurations | 8 |
| DIP Switch Current Configurations | 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A |
| Logic Current Range | 7-16mA (10mA typical) |
| Logic Voltage Range | 4-5 VDC for pulse active high (default), or 0-0.5V for pulse active low |
| Pulse enabled at | Rising edge |
| Idle Current Percent | 50 % |
| # of Digital Inputs | 3 |
| Step Width | 2,500 ns |
| Minimal Direction Setup Time | 5,000 ns |
| Protection | Over current; over voltage; phase error |
| Isolation Resistance | 500M Ohm |
| Environment | Avoid dust, oil fog and corrosive gases |
| Ambient Temperature | 0-50°C |
| Humidity | 40–95% RH |
| Operating Temperature | 0-70°C |
| Vibration | 5.9 m/s2 Max |
| Storage Temperature | -20-65°C |
| Dimensions | 4.65 X 2.97 X 1.30 Inches |
| Weight | 0.60 lb |
