Four Inch 4" Laser Head Assembly and breakdown of Lens, Extension and Cone install

Preface: This article shows the assembly diagram for the Thunder Laser 4" head.

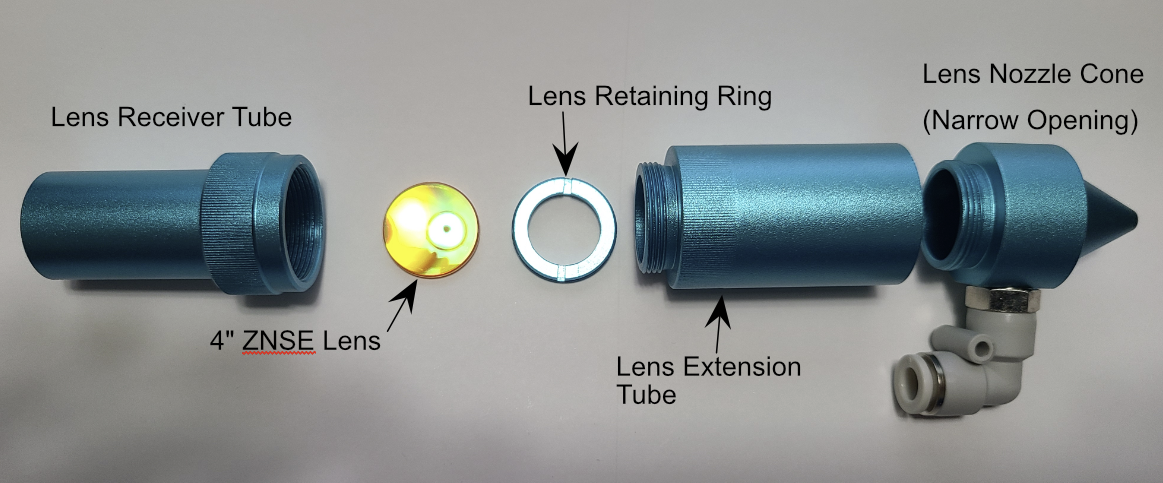

Assemble the Lens in the order shown:

The dome on the lens should be to the left so that when you install the lens assembly, the dome is UP away from the honeycomb.
