This article provides pictures of the internal components of a 2022 Model of an ODIN 22. Your actual pictures may vary.

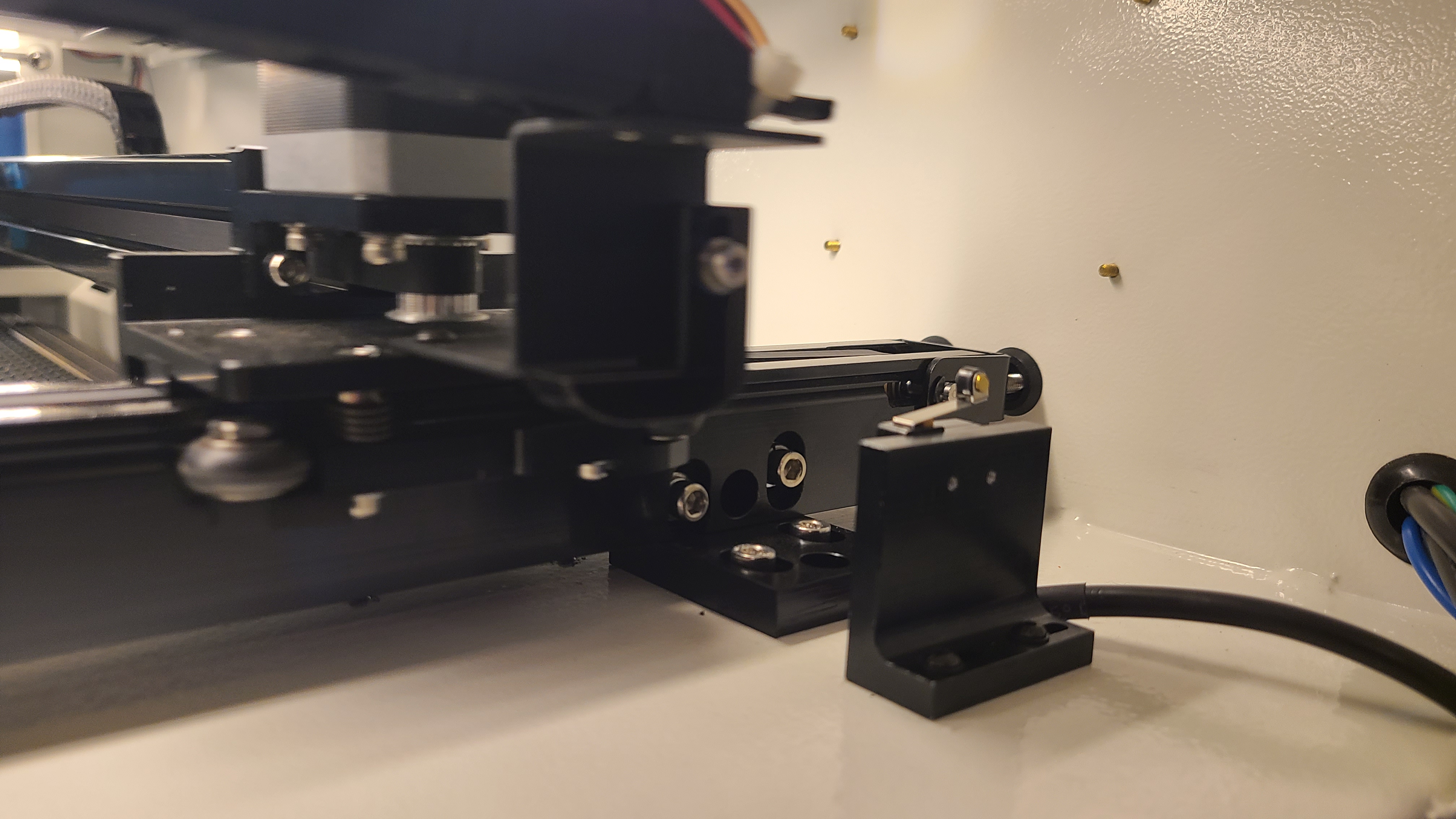

Odin Y Axis Home Sensor

ODIN Y Axis Home Sensor

ODIN Y AXIS HOME SENSOR MADE

ODIN Y AXIS HOME SENSOR

ODIN X Axis Home Sensor

ODIN X AXIS HOME SENSOR

ELECTRICAL CABINET ON THE RIGHT HAND SIDE

ODIN RIGHT HAND SIDE ELECTRICAL CABINET

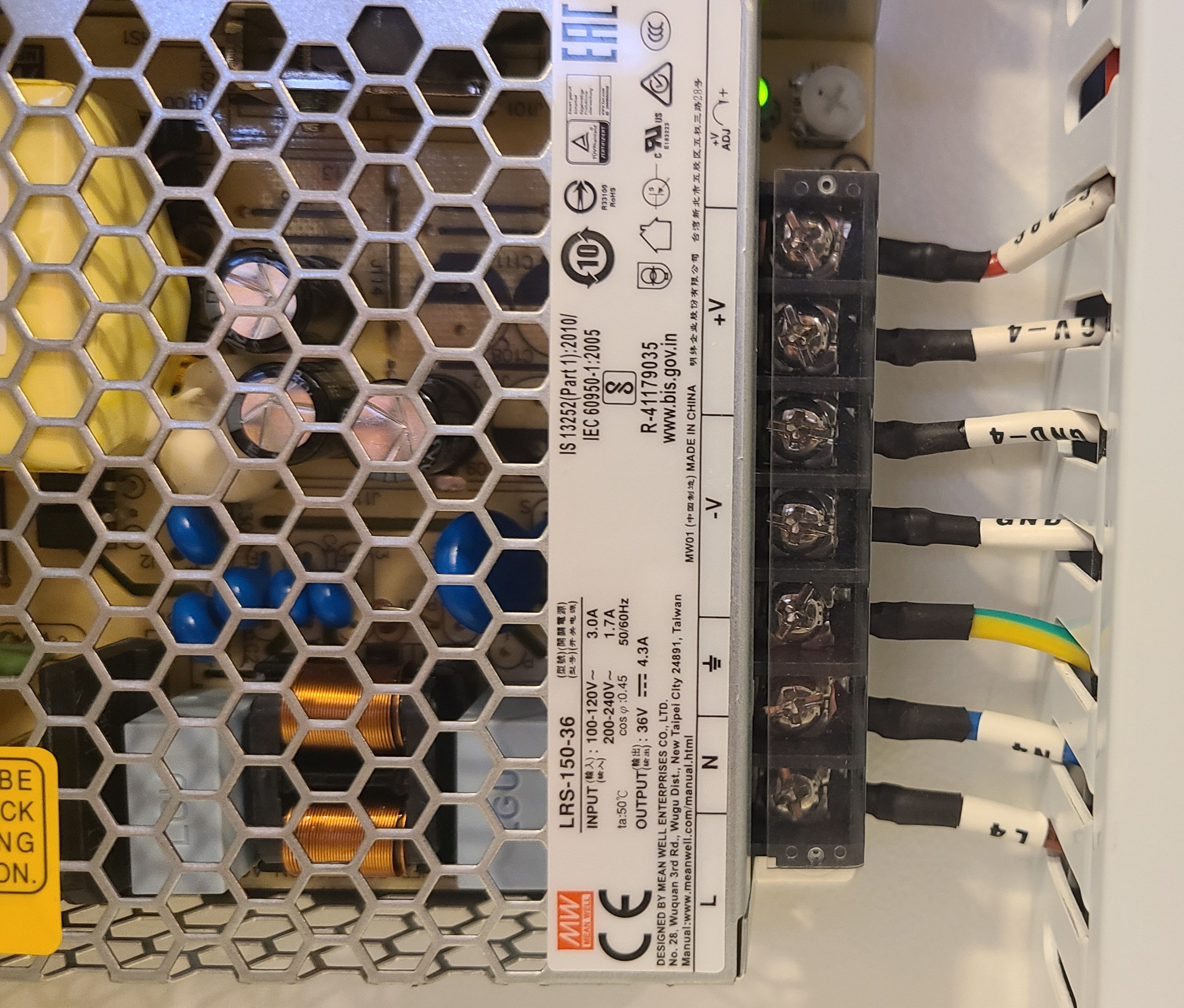

ODIN LRS-150-36 POWER SUPPLY WIRING

ODIN LRS-150-24 POWER SUPPLY WIRING

ODIN RUIDA CONTROLLER WIRING

ODIN X and Y AXIS DRIVERS

ODIN Z Axis Driver Wiring

ODIN TUBE DOOR ELECTRICAL COMPONENT

ODIN RF TUBE LAYOUT

ODIN RSP-500-48 TUBE POWER SUPPLY WIRING

ODIN RF TUBE CONTROL BOARD WIRING

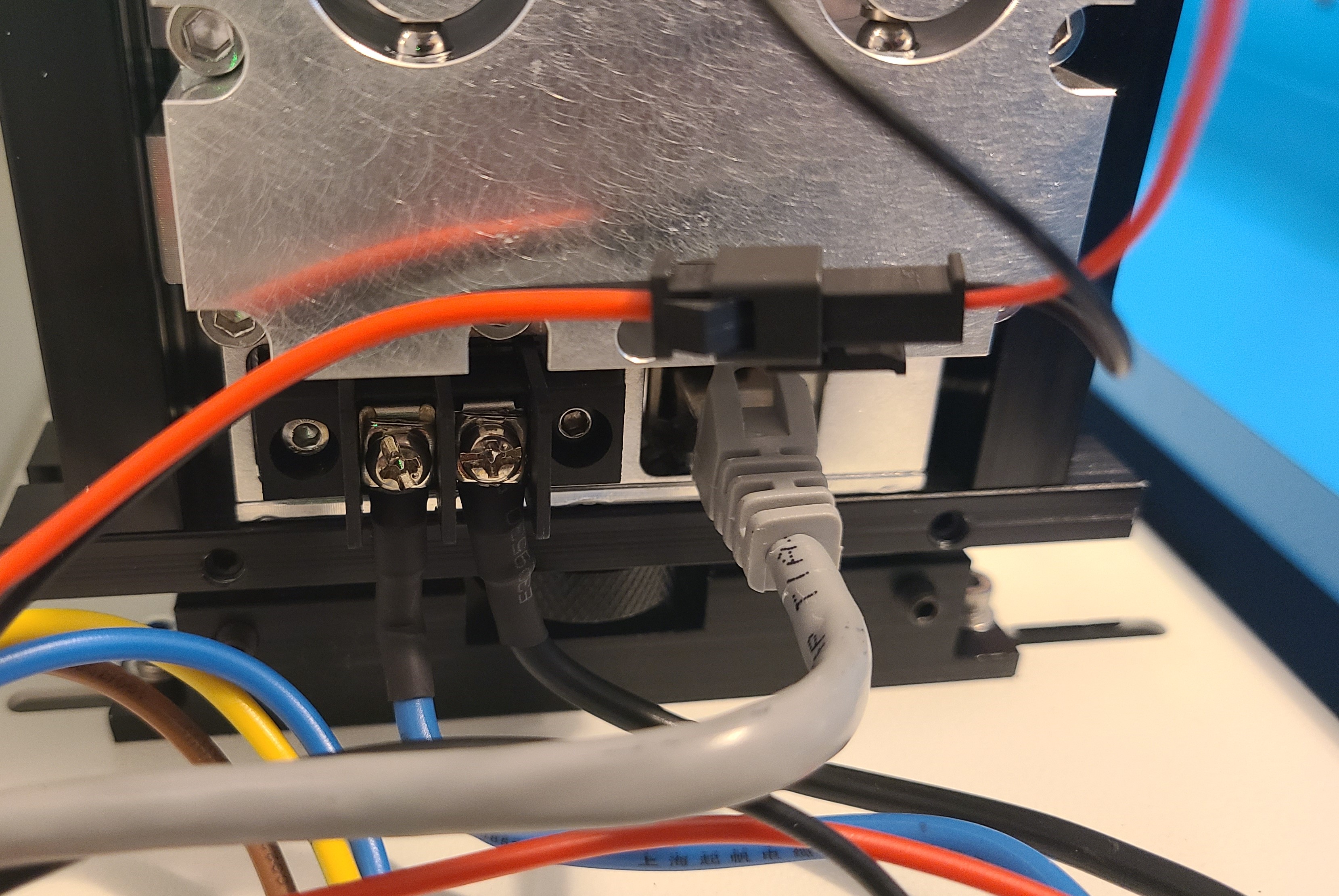

ODIN RF TUBE WIRING

ELECTRICAL CABINET ON THE LEFT HAND SIDE

ODIN DOOR BOARD

ODIN WIRING TERMINAL BLOCKS

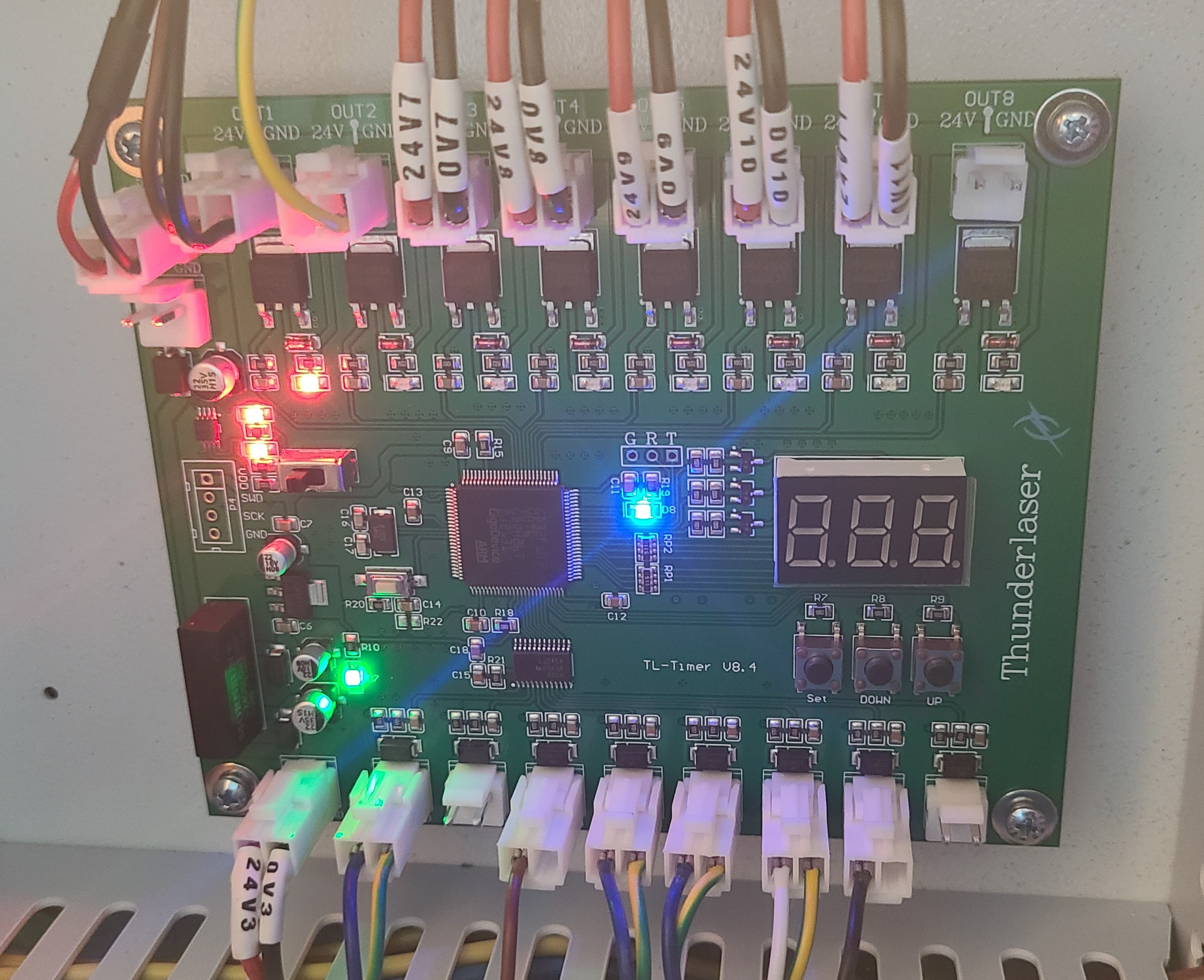

ODIN TL TIMER BOARD

ODIN MAIN BREAKER RELAYS AND CONTACTOR

Relays: Left to Right
FAN, LOW AIR, HIGH AIR, ALARM, ROTARY

ODIN RELAYS WIRING

ODIN HIGH AND LOW AIR CONTROL SOLENOIDS

Z Axis Honeycomb Drive Belt Mechanical

ODIN Z AXIS UPPER (Zlimit-) and LOWER (Zlimit+) Endstops

ODIN Z Axis Honeycomb Tensioner Assembly

ODIN Z Belt Tensioner close up

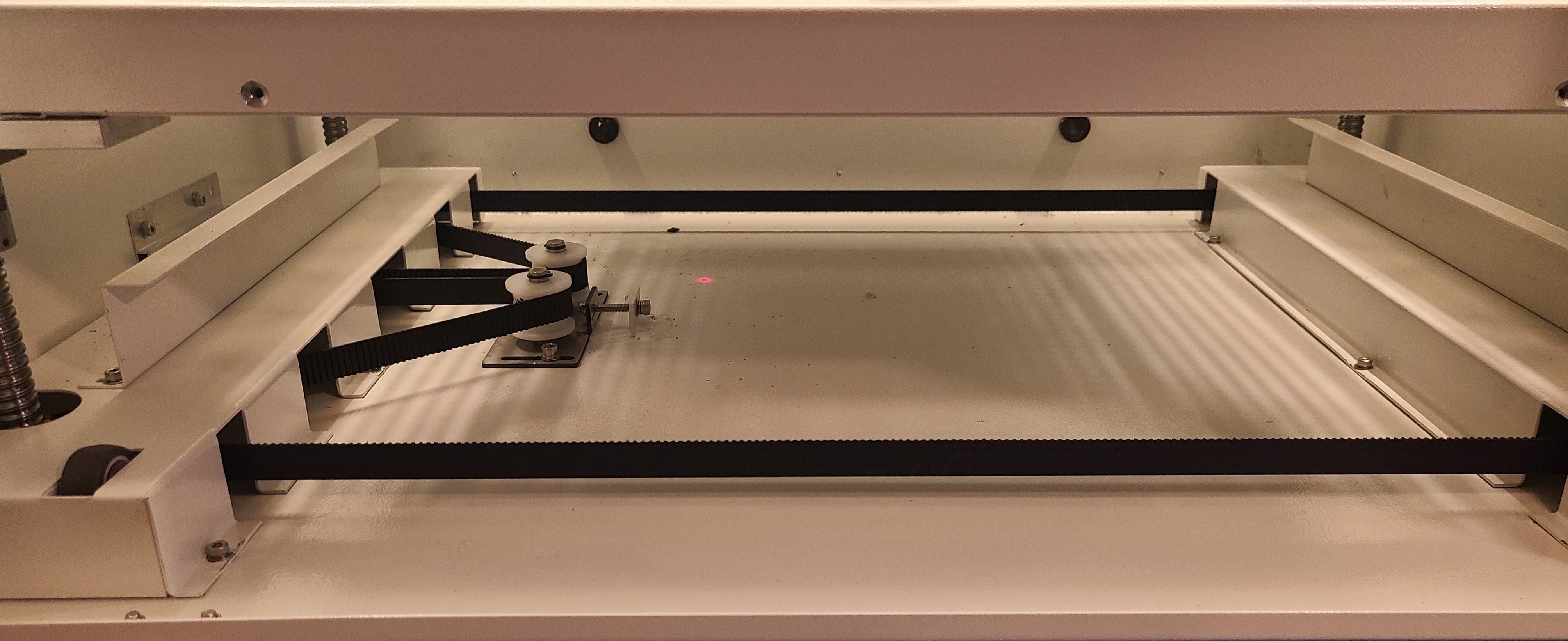

ODIN Z Belt Layout
