Preface: This article discusses the idea of upgrading the hardware and the firmware to the version that can be supported modifying the parameter of the Y axis driver.
Required Materials

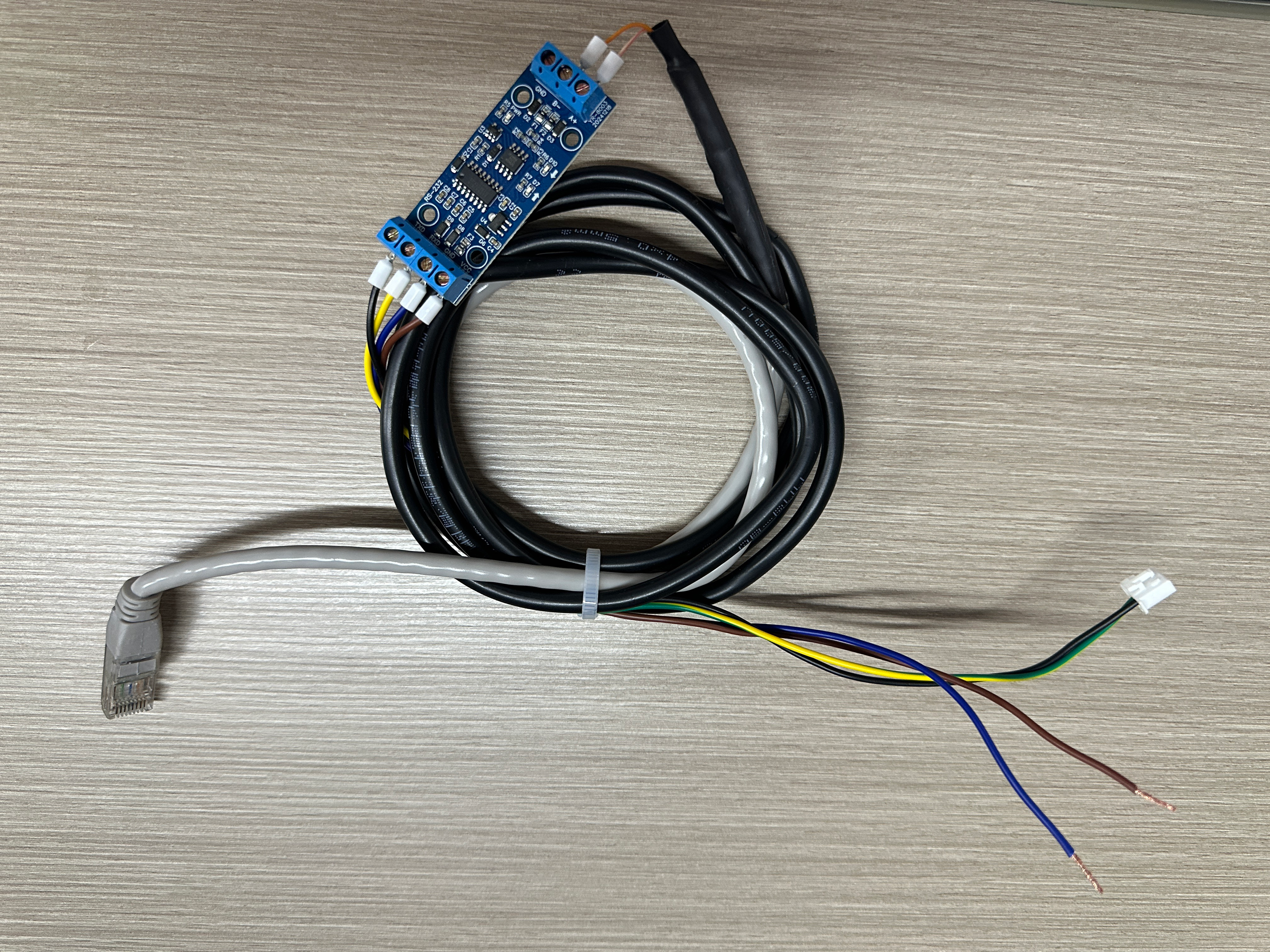

RS232-to-RS485 Adapter Board Cable

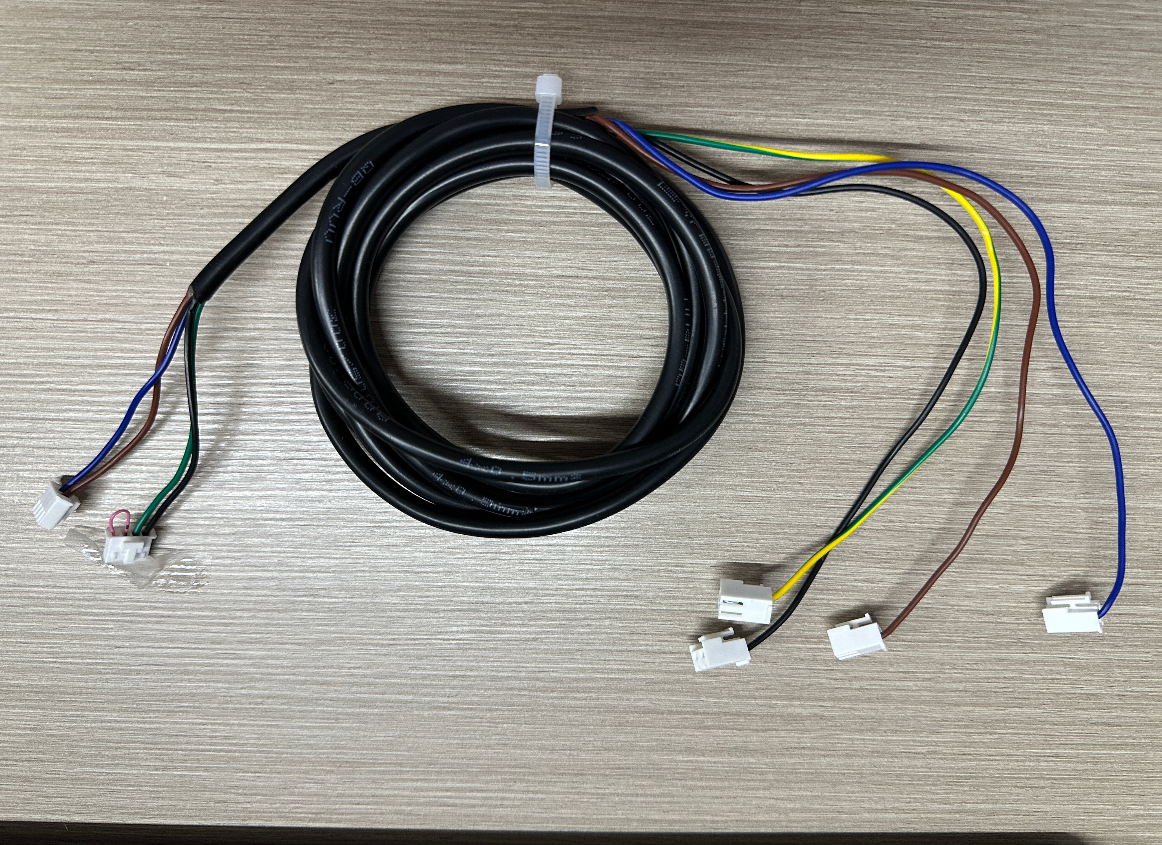

TL Timer Expansion Board cables

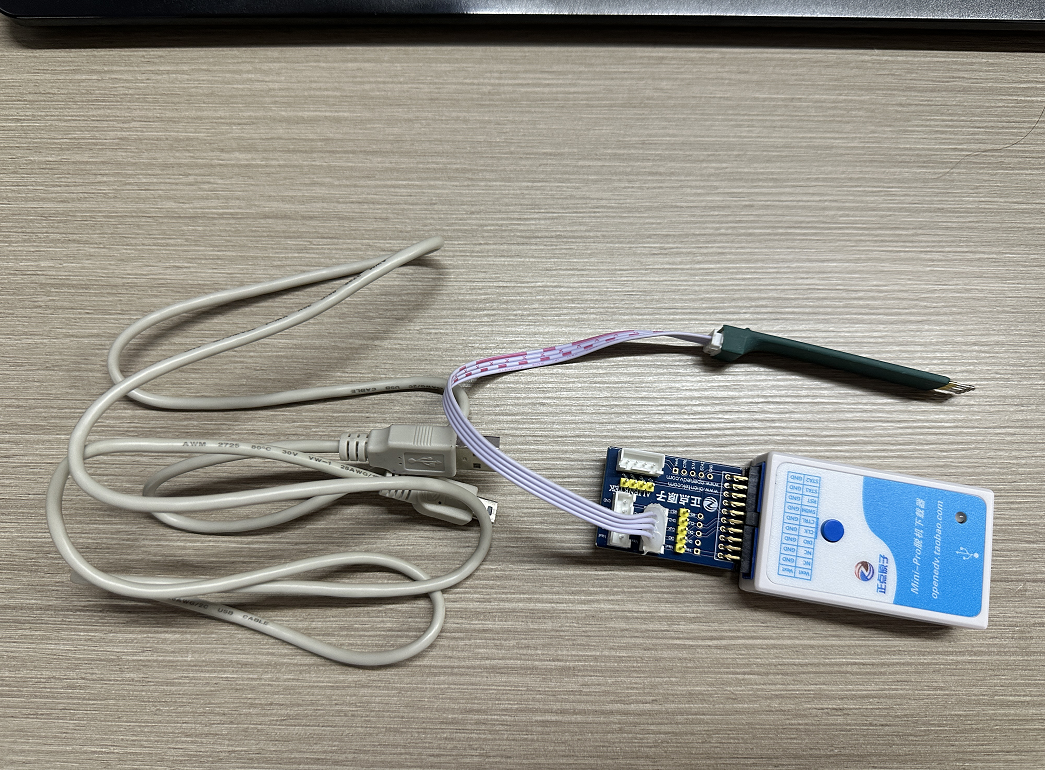

Program downloader
Hardware Replaced
1. Replacement Steps for the RS232-to-RS485 Adapter Cable
Connect the Ethernet cable connector of the RS232-to-RS485 adapter cable to the In Port of the Y-axis driver.
Connect the yellow & green wire of the RS232-to-RS485 adapter cable to the GRT port on the TL board, remove the original cable; connect the blue wire to GND on the wiring bar, and the red wire to L on the wiring bar.
2. Replacement Steps for TL Expansion Board cables

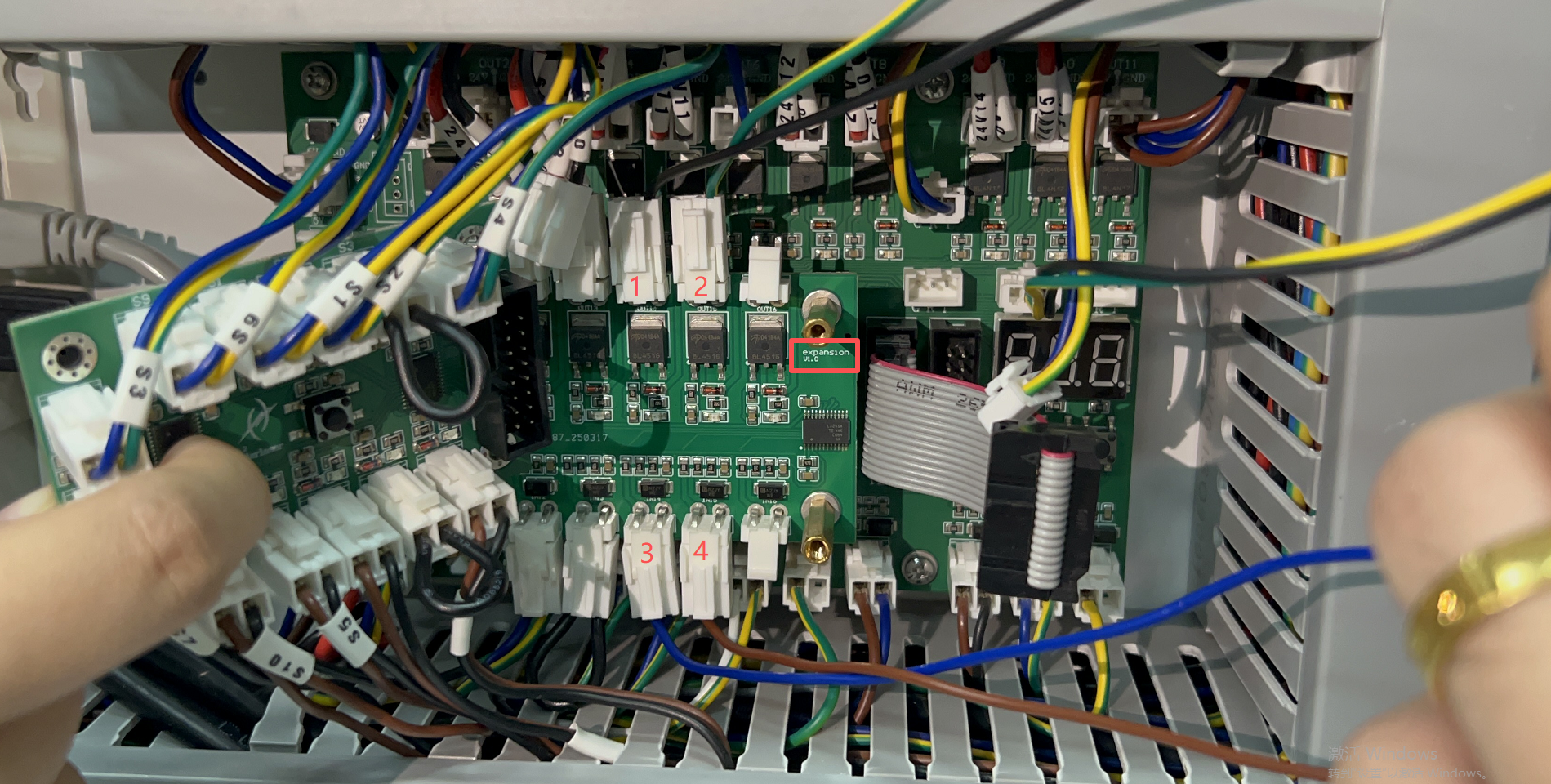

Connect the four terminals on the left side of the cable to the TL Expansion Board, according to their colors (1–4).
Locate the Auto Focus Board at the rear-left side of the machine, and connect the 4-pin and 2-pin terminals one by one to the board, respectively.
Firmware Upgrade
1. Upgrade the HMI firmware and controller firmware
Open RDWorks, and locate in the menu bar, go System setting > Controller > Upgrade HMI first > Upgrade Firmware second
2. Upgrade the program of TL Timer Board and Auto Focus Board

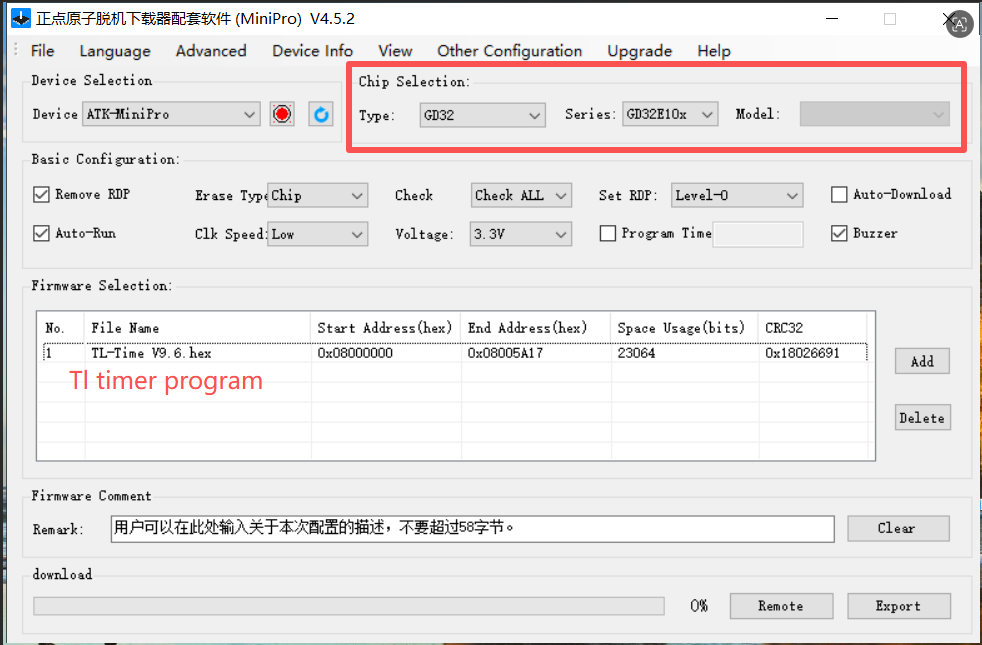

TL Timer Board
Note: Please pay attention to the pin orientation when upgrading to the TL Timer (align GND with GND).

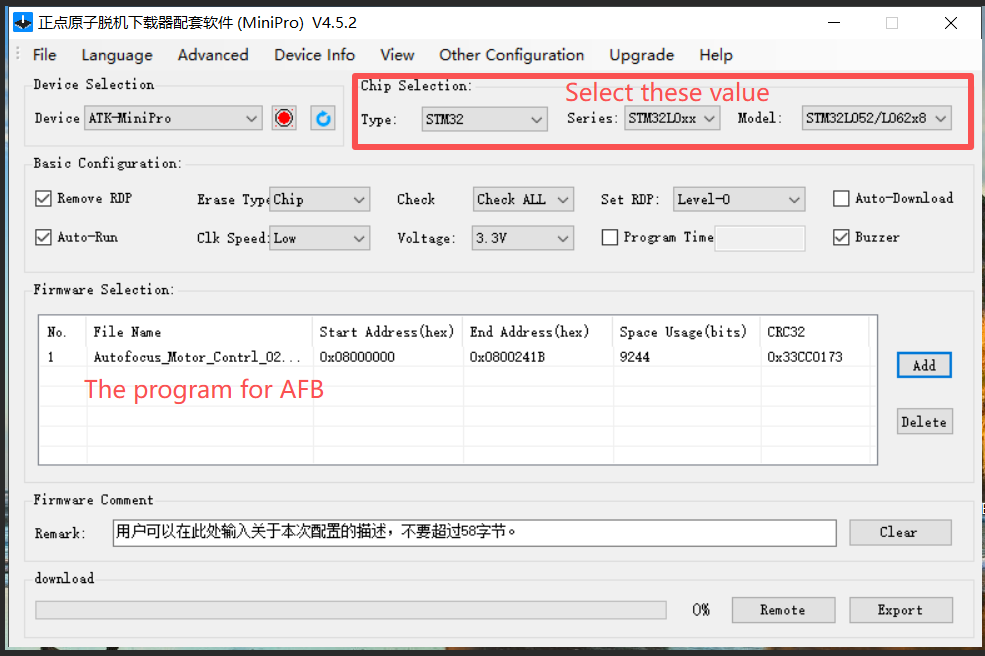

Auto Focus Board
