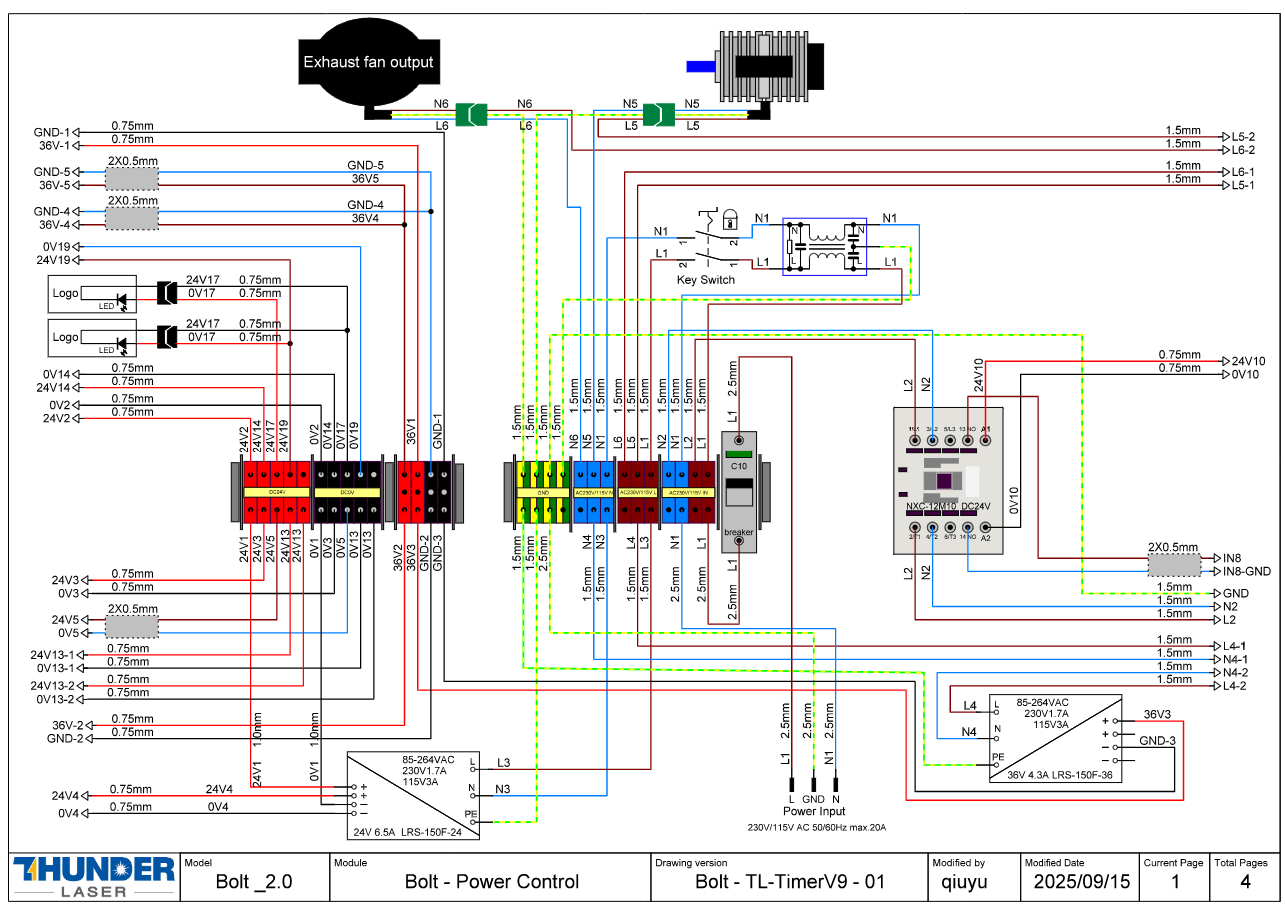

Thunder Bolt 2.0 Plus 24 and Pro 36 TL Timer V9.6 Wiring Diagram / Schematics (September 2026)
Wiring diagrams and schematics for the Thunder Bolt 2.0, Bolt Plus 24, and Bolt Pro 36 with TL Timer V9.6.
Bolt V2 Wiring Diagram.clb · Import into LightBurnBolt Plus 24 Wiring Diagram.clb · Import into LightBurnBolt Pro 36 Wiring Diagram.clb · Import into LightBurn
How to import
- Download the
.clblibrary file above. - In LightBurn, open the Material Library window (Window ▸ Material Library).
- Click the load icon and choose Load an existing library, then select the downloaded
.clbfile. - Assign settings to a layer by double-clicking an entry.
Provided as-is for Thunder Laser USA customers. Always run a test cut on scrap first — settings vary by material and machine. Please do not redistribute.
Applies to: Thunder Bolt 2.0, Bolt Plus 24, Bolt Pro 36 — TL Timer V9.6 (September 2026)
