Thunder Laser Bolt Series Critical Spare Part Recommendations
Recommended critical spare parts for the Thunder Laser Bolt series, including optics, electrical components, and mechanical parts with purchase links.
This article discusses spare parts needs for your Thunder Laser machine, you must verify all part numbers for your existing part. Links may change, expire outside of our control.
If your laser is your business and down time is not acceptable while you wait on spare parts, then the following are recommended (Below are links to purchase and/or tech articles related to each subject):
Optics
Mirrors
Mirrors are a consumable and will greatly affect your power output if they are dirty or failed. For the Bolt series, the mirrors come pre-set in the aluminum tray for mirror location 1 & 2 and a loose mirror for location 3.
Lens
Lens are a consumable and will greatly affect your power output if they are dirty or failed. For the Bolt series, the lens come pre-set in the aluminum tray.
Lens Ecom Links:
| Location | Reference Picture |
|---|---|
| Mirror 1 & 2 (Qty 2) |  |
| Mirror 3 (Qty 1) |  |
Electrical
Power Supplies
The Bolt series has three AC-DC power supplies. One for Tube, One for the Control circuits X/Y Drivers and One for the Z/Rotary Drivers.
Motors Drivers
Oriental motor: These will be on the older Bolt machines, visually inspect your model before purchasing.
Leadshine motor: These will be on the newer Bolt machines, visually inspect your model before purchasing.
Sensors and Control Components
| Function | Reference Image |
|---|---|
| 48V Tube Power Supply: 30W , 55W/60W |  |
| 24V Control Circuit / X/Y Drivers |  |

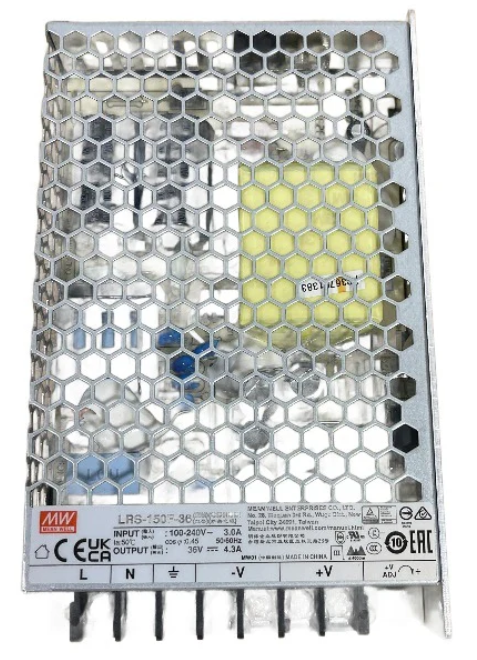

| 36V Z Driver and Rotary Driver |  |
| Location | Reference Image |
|---|---|

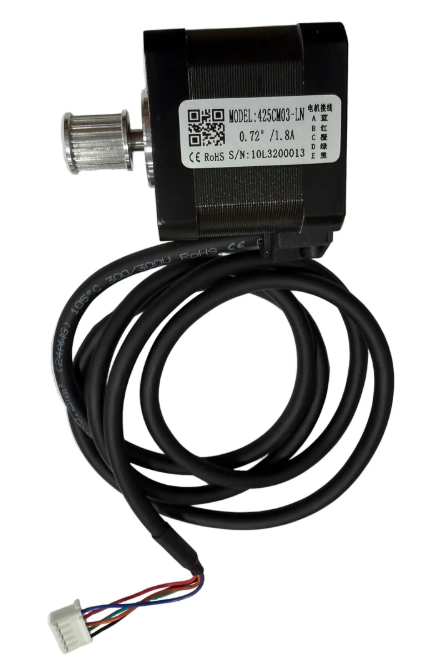

| X Axis Motor |  |

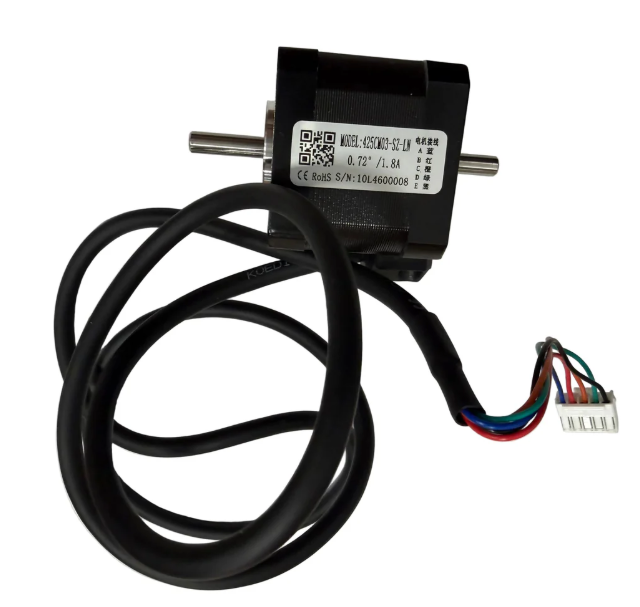

| Y Axis Motor |  |
| X/Y Axis Motor Driver |  |
| Location | Reference Image |
|---|---|
| X Axis Motor |  |
| Y Axis Motor |  |
| X/Y Axis Motor Driver |  |
| Location | Reference Image |
|---|---|
| X/Y Endstops (Qty 2) |  |
| Z Endstops (Qty 2) |  |
| Auto Focus Sensor (Qty 1) |  |
| Air solenoids, double stacked type, for Desktop Models |  |

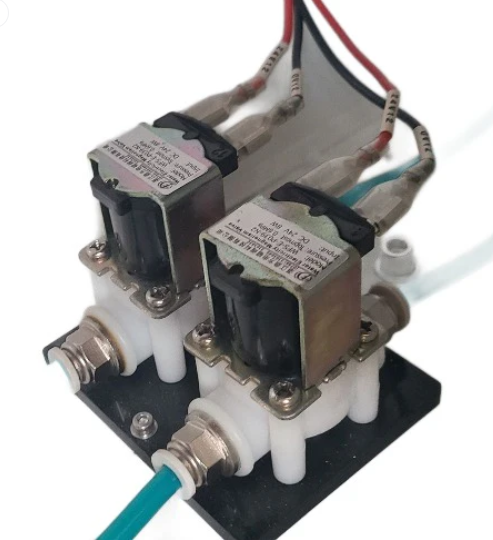

| Air Solenoids (Models 22,32,36) |  |

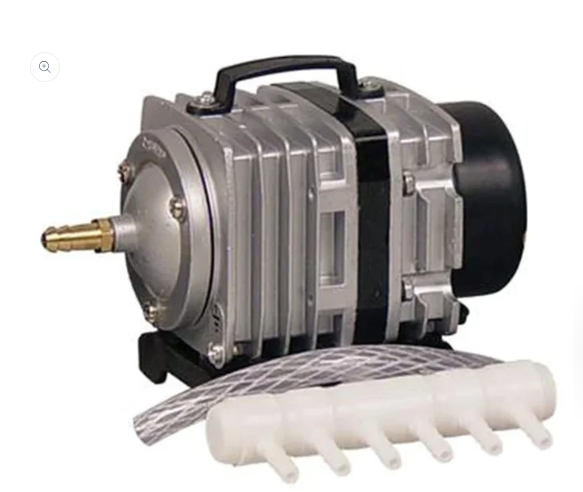

| Air Pump for Internal Type, External Type (Take note of your brand, Hialeah VS Sensen, the output fitting may change between models) |
 |

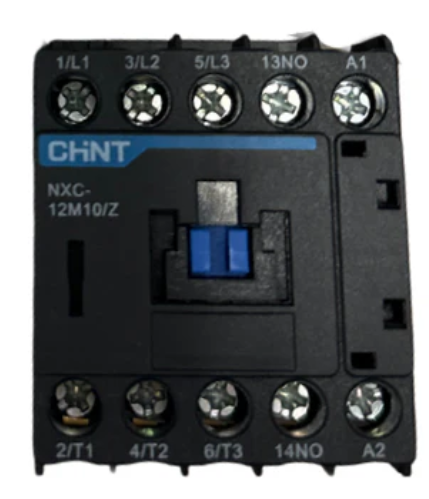

| Main Power Contactor Bolt/Plus, Pro 22/32 |  |
| Controller |  |
Mechanical
Email [email protected] for more information
| Location | Reference Image |
|---|---|

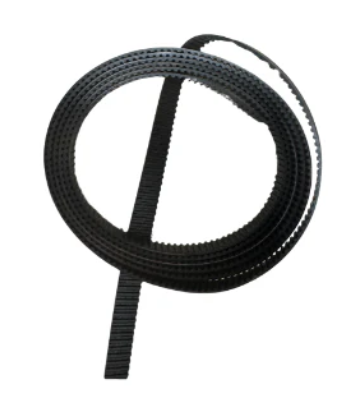

| Belt - Length Varies by Axis |  |
| Auto Focus Touch Post |  |
