Example of Belt Wear on a Thunder Laser Nova Series Machine
Visual guide to identifying worn belts on the Nova series laser, including odometer readings, comparison photos, missing teeth, and replacement belt part links.
Preface: This article covers what worn belts may look like on your Nova series machine.
Odometer Reading
Using Lightburn's "Get Controller information" we can take a peak at the odometer of the machine.
The Nova 51 has over 5000 hours of movement with over 10 million meters of motion in the X direction and over 32000 meters of motion in the Y direction.
Visual Belt Wear Inspection

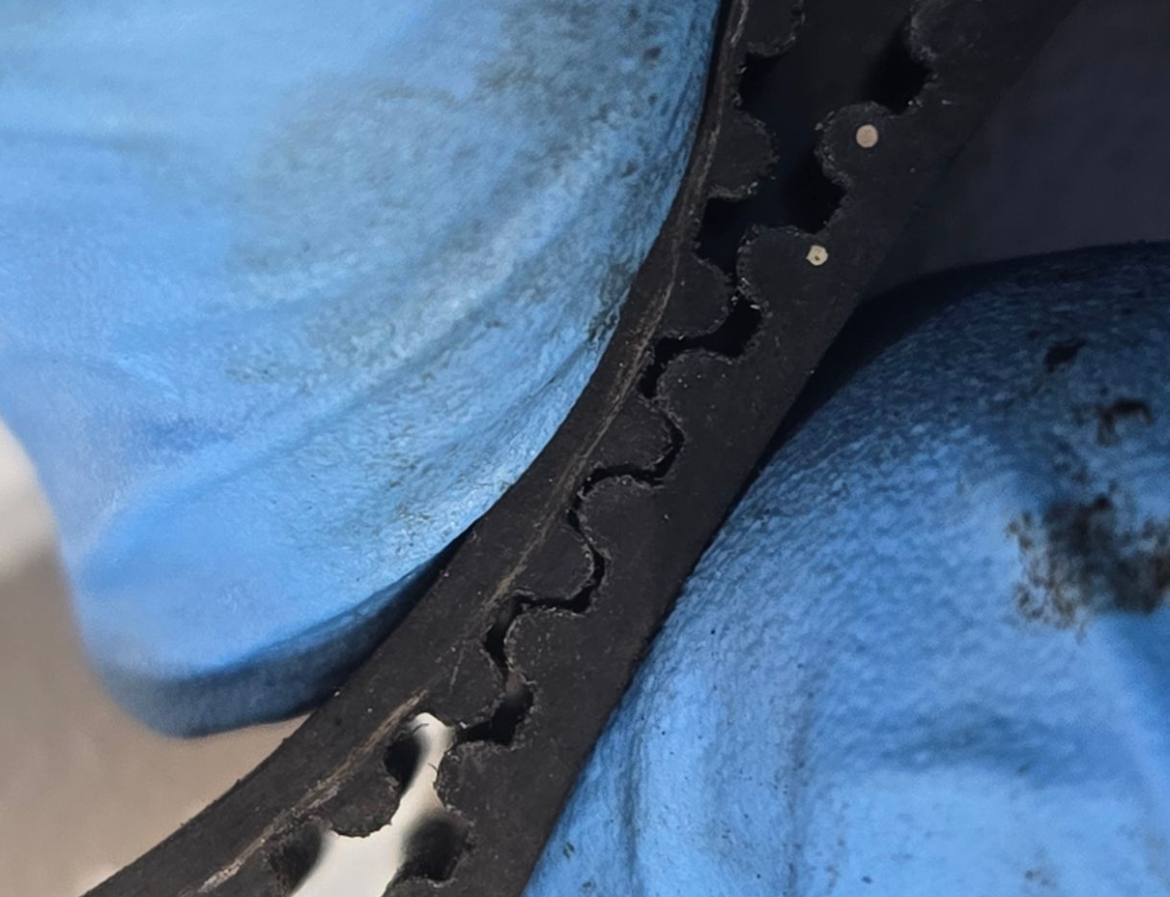

On the Used Worn Belt take note of how the teeth of the belt are shaped and how poorly they mesh together compared to how the teeth of the New Belt look. The Used Worn belt has obvious wear and was in need of replacement.
Missing Teeth
Belt was likely over tightened and run. Only lasted a brief period.
| Used Worn Belt | New Belt |
|---|---|
 |
 |
Replacement Belts
- Small X Motor Loop Belt
- Small Y Motor Loop Belt (3:1 gear ratio)
- Small Y Motor Loop Belt (2:1 gear ratio)
- Bulk X/Y Belt (Purchase by the foot)
Which Ratio Y Motor Loop Belt do you have
The difference in the belts will be determined by the marking on the belt and the visual of the gear pulley on the split shaft. The 3:1 gear ratio belt will be a 3m-267-15 belt.
| Y Motor Loop Belt 2:1 | Y Motor Loop Belt 3:1 |
|---|---|
 |
 |
